HC-26S1N8A2300X

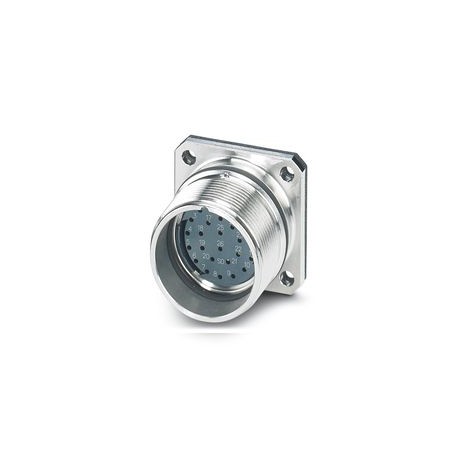

HC-26S1N8A2300X 1244828 PHOENIX CONTACT Connect. plug in. to apar. wall delant.
$36.82USD
305 in stock
Key Specifications
Type:straight
Coding:N
Series:HC
General:Order crimp contacts Ø 1 mm separately
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | straight |
| Coding | N |
| Series | HC |
| General | Order crimp contacts Ø 1 mm separately |
| Altitude | 2000 m |
| Mounting | 4x Ø 3.2 |
| Shielded | yes |
| Application | Signal |
| Thread type | M27 |
| Max. current | 8 A |
| Product type | Circular connectors (device side) |
| Seal material | FPM or NBR or EPDM |
| Contact diameter | 1 mm |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 26 |
| Nominal voltage UN | 48 V AC 74 V DC |
| Degree of pollution | 3 |
| Number of positions | 26 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact connection type | Socket |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Flammability rating according to UL 94 | V0 |
Product Description
Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Socket, Flat gasket, 4x Ø 3.2, shielded: yes, degree of protection: IP67, num
