HC-26P2N8A80AB

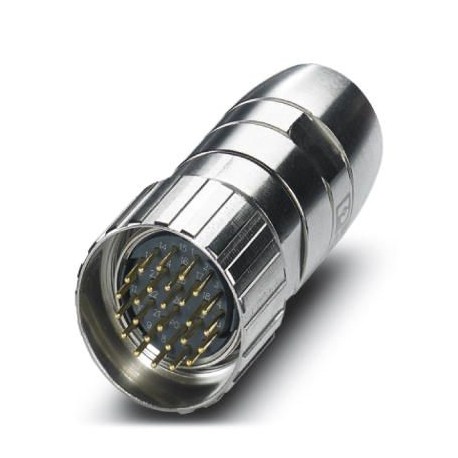

HC-26P2N8A80AB 1623284 PHOENIX CONTACT Cable connector
$0.00USD
4423 in stock
Key Specifications
GTIN:4055626273099
Orderkey:1623284
Packing unit:1
Custom tariff number:85366990
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626273099 |
| Orderkey | 1623284 |
| Packing unit | 1 |
| Custom tariff number | 85366990 |
| Note (Key Commercial Data) | Order information: Order crimp contacts Ø 1 mm separately |
| Coding (Key Commercial Data) | N |
| Degree of protection (General) | IP67, when plugged in |
| Conductor entry (Key Commercial Data) | 9.5 mm ... 11.5 mm |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Pin |
| Number of positions (Key Commercial Data) | 26 |
| Contact connection method (Key Commercial Data) | Crimp connection |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | none |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| Degree of pollution of power contacts (Ambient conditions) | 3 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Rated surge voltage of power contacts (Ambient conditions) | 1.5 kV |
| Overvoltage category of power contacts (Ambient conditions) | II |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Nominal / operating voltage of power contacts (Ambient conditions) | 150 V |
| Direction of rotation of contact chamber numbering (Key Commercial Data) | Standard |
