HC-26P1N8A90DUX

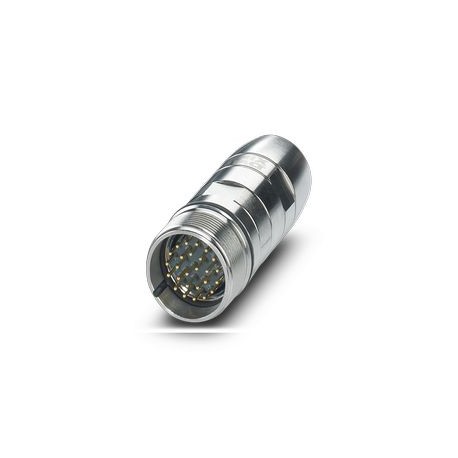

HC-26P1N8A90DUX 1244827 PHOENIX CONTACT Plug-in Mating Connector, Straight, Screw Lock, M27, Number of Poles..
$0.00USD
3384 in stock
Key Specifications
Type:straight
Coding:N
Series:HC
General:Order crimp contacts Ø 1 mm separately
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | straight |
| Coding | N |
| Series | HC |
| General | Order crimp contacts Ø 1 mm separately |
| Altitude | 2000 m |
| Shielded | yes |
| Application | Signal |
| Head design | Pin |
| Thread type | M27 |
| Max. current | 8 A |
| Product type | Circular connector (cable-side) |
| Seal material | NBR |
| Contact diameter | 1 mm |
| Housing material | Metal |
| Connection method | Crimp connection |
| Connection profile | 26 |
| Nominal voltage UN | 48 V AC 74 V DC |
| Degree of pollution | 3 |
| Number of positions | 26 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| External cable diameter | 2 mm ... 14.5 mm |
| Ambient temperature (operation) | -20 °C ... 125 °C |
Product Description
Coupler connector, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, shielded: yes, degree of protection: IP67, cable diameter range: 2 mm ... 14.5 mm, num
