HC-26P1N324300

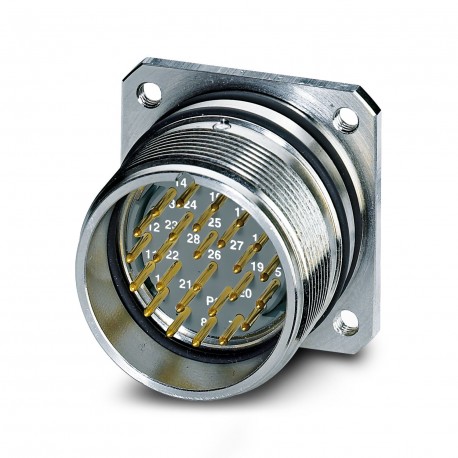

HC-26P1N324300 1590311 PHOENIX CONTACT Device connector, rear mounting
$0.00USD
3432 in stock
Key Specifications
:4.5 mm
Type:straight
Coding:N
Series:HC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 4.5 mm | |
| Type | straight |
| Coding | N |
| Series | HC |
| Altitude | 2000 m |
| Mounting | 4x M3 |
| Shielded | yes |
| Application | Signal |
| Thread type | M27 |
| Max. current | 8 A |
| Product type | Circular connectors (device side) |
| Mounting type | Rear mounting |
| Seal material | FPM or NBR or EPDM |
| Contact surface | Nickel-plated, gold coating |
| Contact diameter | 1 mm |
| Contact material | CuZn |
| Housing material | Metal |
| Connection method | Solder pins |
| Connection profile | 26 |
| Nominal voltage UN | 48 V AC 74 V DC |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 26 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact connection type | Pin |
| Length of the solder pin | 4.5 mm |
| Insertion/withdrawal cycles | 50 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Flammability rating according to UL 94 | V0 |
Product Description
Conect. plug. to be apar. poster wall, straight, Screw lock, M27, number of poles: 26, contact type: Male, Radial O-ring, 4xM3, shielded: yes, protection index: IP67, number of poles: 26, connection t
