HC-26P1N122300X

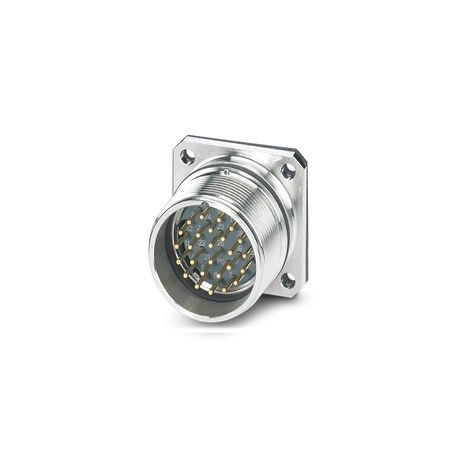

HC-26P1N122300X 1240134 PHOENIX CONTACT Connect. plug. for apar. front wall, straight, Screw locking, M27, n..
$47.99USD
256 in stock
Key Specifications
Type:straight
Coding:N
Series:HC
Mounting:4x Ø 3.2
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | straight |
| Coding | N |
| Series | HC |
| Mounting | 4x Ø 3.2 |
| Shielded | yes |
| Application | Signal |
| Thread type | M27 |
| Max. current | 8 A |
| Product type | Circular connectors (device side) |
| Seal material | FPM or NBR or EPDM |
| Contact diameter | 1 mm |
| Housing material | Metal |
| Connection method | Solder connection |
| Connection profile | 26 |
| Max. cross section | 1 mm² |
| Min. cross section | 0.08 mm² |
| Nominal voltage UN | 48 V AC 74 V DC |
| Degree of pollution | 3 |
| Number of positions | 26 |
| Rated surge voltage | 1.5 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact connection type | Pin |
| Insertion/withdrawal cycles | 50 |
| Flammability rating according to UL 94 | V0 |
Product Description
Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, Flat gasket, 4x Ø 3.2, shielded: yes, degree of protection: IP67, number
