HC-26P1N122300

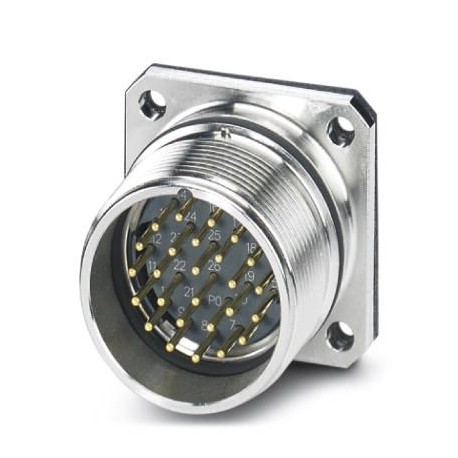

HC-26P1N122300 1590276 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4178 in stock
Key Specifications
GTIN:4046356186520
Note:Made to Order (non-returnable)
Orderkey:1590276
Packing unit:24 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356186520 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1590276 |
| Packing unit | 24 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -20 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Installation height max. (Material) | 2000 m |
| Mounting type (Key Commercial Data) | 4x Ø 3.2 |
| Contact surface (Ambient conditions) | Nickel-plated, gold coating |
| Weight per Piece (excluding packing) | 45.450 g |
| Contact material (Ambient conditions) | CuZn |
| Housing material (Ambient conditions) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Pin |
| Insulator material (Ambient conditions) | PA66 |
| Number of positions (Key Commercial Data) | 26 |
| Contact connection method (Key Commercial Data) | Solder connection |
| Gasket and O-ring material (Ambient conditions) | NBR |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Degree of pollution of power contacts (Material) | 3 |
| Rated surge voltage of power contacts (Material) | 1.5 kV |
| Degree of pollution of signal contacts (Material) | 3 |
| Overvoltage category of power contacts (Material) | II |
| Pg housing screw connection (Key Commercial Data) | none |
| Overvoltage category of signal contacts (Material) | II |
| Contact diameter of power contacts (Key Commercial Data) | 1 mm |
| Nominal / operating voltage of power contacts (Material) | 150 V |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Insertion/withdrawal cycles mechanical (Key Commercial Data) | 50 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 8 A |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.08 mm² |
| Direction of rotation of contact chamber numbering (Key Commercial Data) | Standard |
Product Description
Conect. plug. to be apar. front wall, straight, Screw lock, M27, number of poles: 26, contact type: Male, Flat joint, 4x Ø 3.2, shielded: yes, protection index: IP67, number of poles: 26, connection t
