HBG-60-2100P

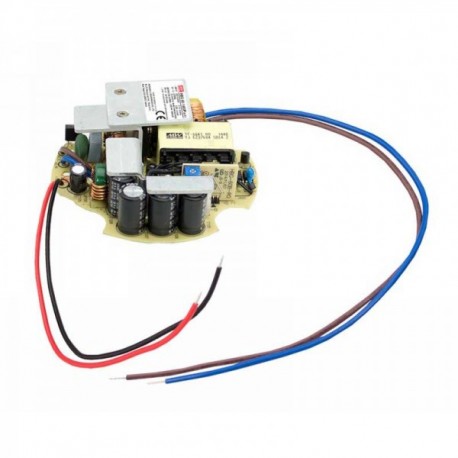

HBG-60-2100P MEANWELL AC-DC Single output LED driver (CC ) with PFC, Output 29VDC / 2.1A, , Circular PCB ope..
$0.00USD
3662 in stock
Key Specifications
Name:HBG-60-2100P
Format:Open Format
Series:HBG-60P
Approvals:CCC, CE, ENEC, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | HBG-60-2100P |
| Format | Open Format |
| Series | HBG-60P |
| Approvals | CCC, CE, ENEC, UL |
| Power (W) | 60,90 |
| Width (mm) | 99.00 |
| Height (mm) | 26.00 |
| AC input Max | 295,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 60.9 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 99.00 |
| Long Description | LED driver.Specially designed for powering LEDs directly in a steady stream.Circular format is open, typePCBS.Input range90-295Vca47-63Hz.Output in constant current2,1 A.Range of output voltage with current mode constant19 to 29Vccaccording to demand load.Power:For 60.9 W.Efficiency typical:89%.Input class II without grounding.Factor corrector, power>0.95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Diameter x Height):110 x 60.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.With housing circular open. The series HBG is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in the interior. Input class II non-grounded, and this version P, is formatted as open type PCB. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | Two thousand one hundred |
| Intensity of Minimum Output (mA) | 2.100,00 |
| Intensity of Output Maximum (mA) | 2.100,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver.
