HBG-160-48B

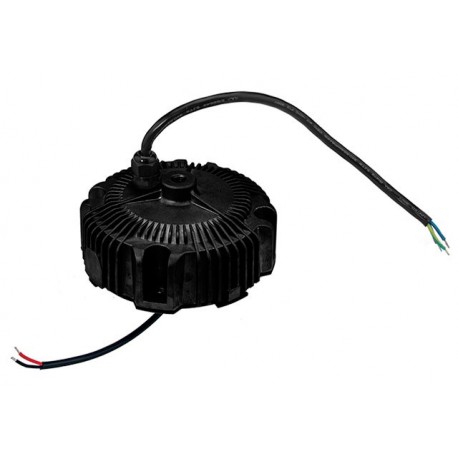

HBG-160-48B MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 48 VDC / 3.3A, IP67, for in- an..
$0.00USD
3463 in stock
Key Specifications
Name:HBG-160-48B
State:Recommended Model
Format:Box
Series:HBG-160-B
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | HBG-160-48B |
| State | Recommended Model |
| Format | Box |
| Series | HBG-160-B |
| Dimming | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approvals | CCC, CE, ENEC, UL |
| Power (W) | 158,40 |
| Subformato | IP67 |
| Width (mm) | 151.68 |
| Height (mm) | 66.50 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 158.4 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 151.68 |
| Long Description | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format, round, plastic, patented, waterproof,IP67.Input range90-305Vca47-63Hz.Output in constant current3,3 A.Range of output voltage with current mode constant28,8 @ 48vdcaccording to demand load.Power:158,4 W.Efficiency typical:93%.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Diameter x Height):151,68 x 66,5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 48V if the load is powered at constant voltage and does not overcome the maximum output power.With shell circular plastic IP67. The series HBG is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. Input class I with grounding. Approved HL Class I Division 2 for ex-zones in the US.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | Three thousand three hundred |
| Intensity of Minimum Output (mA) | 3.300,00 |
| Intensity of Output Maximum (mA) | 3.300,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable.
