In Stock Hot Product
HALP080806GE

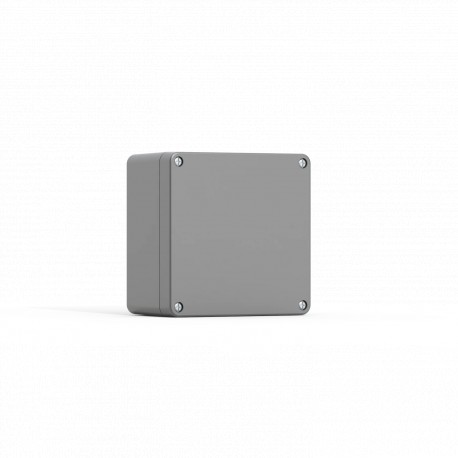

HALP080806GE ELDON Terminal box, 80x75x57 HALP080806GE
$0.00USD
3625 in stock
Key Specifications
EAN:8713574089204
UPC:783510482152
Color:Silver Grey
Finish:Powder Coated
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574089204 |
| UPC | 783510482152 |
| Color | Silver Grey |
| Finish | Powder Coated |
| Weight | 0.3 kg |
| Material | Aluminum |
| Depth (D) | 57 mm |
| Width (W) | 75 mm |
| Color Code | RAL 7001 |
| Height (H) | 80 mm |
| Thread Type | M4 |
| Feature Name | Feature Value |
| Body Thickness | 3.5 mm |
| Cover Thickness | 2.5 mm |
| Depth (EF000049) | 57.00 mm |
| Packing Quantity | 1.0000 |
| Width (EF000008) | 75.00 mm |
| Colour (EF000007) | |
| Height (EF000040) | 80.00 mm |
| Cover Screw Quantity | 4 |
| With lock (EF006306) | false |
| Atributo del producto | Valor |
| RAL-number (EF000116) | 7.00 |
| Cover model (EF009212) | Closed |
| Inner depth (EF001131) | None mm |
| Type of door (EF004464) | None |
| Built-in depth (EF000218) | None mm |
| Number of rows (EF000266) | 0.00 |
| Impact strength (EF004293) | IK07 |
| Mounting method (EF000003) | Surface mounted |
| Housing material (EF001596) | Aluminium |
| Standard Packaging Quantity | 1.0000 |
| Type of covering (EF000339) | Cover |
| Circuit integrity (EF001613) | None |
| Number of modules (EF004427) | 0.00 |
| Extension possible (EF001088) | false |
| Surface protection (EF000139) | |
| With mounting plate (EF000118) | false |
| Nominal current (In) (EF008873) | None A |
| Transparent cover/door (EF006244) | false |
| Number of conduit inlets (EF000437) | 0.00 |
| Suitable for outdoor use (EF003532) | true |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | |
| Cover with overpressure release (EF015940) | |
| Material plate thickness cabinet (EF009170) | None mm |
| Suitable for lightning protection (EF007800) | false |
| Material plate thickness door/cover (EF009171) | None mm |
| Width in number of modular spacings (EF002950) | |
| Number of openings for flange plates (EF009554) | 0.00 |
| Protection class according to IEC 61140 (EF000004) | I |
Product Description
Box for terminals, 80x75x57, without MP, aluminium, IP66
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
