In Stock Hot Product
H8E/1

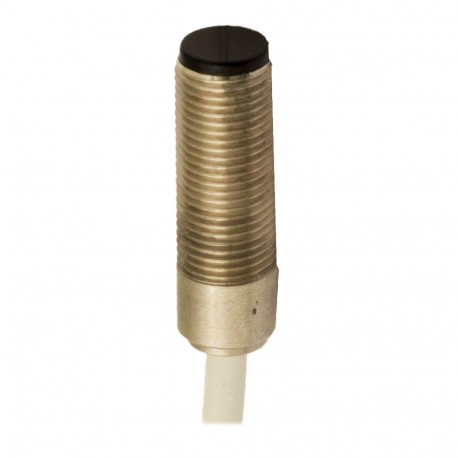

H8E/1 MICRO DETECTORS Photoelectric sensor Emitter 5V 80 mm cable 2m
$0.00USD
3006 in stock
Key Specifications
Weight:63g
Emission:Infrared (880nm)
Approvals:CE
Dimensions:M8x0,75/L=25mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 63g |
| Emission | Infrared (880nm) |
| Approvals | CE |
| Dimensions | M8x0,75/L=25mm |
| Connections | Cable 2m PVC |
| Load current | ≤2,5mA |
| Optic position | Axial |
| Emitter/Receiver | Emitter |
| Housing Material | Stainless Steel |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | ≤5Vdc |
| Function Principle | Through-beam |
| Max ripple content | ≤1% |
| Output voltage drop | ≤0,2V IL=2,5mA |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Metallic nut (2x) |
| Operating temperature | - 25°C…+ 70° C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤25mA |
| Sensitivity adjustment | No |
| Nominal sensing distance | 80mm |
| Interference to external light | 150lux (incandescent lamp) |
