H7CC-AS

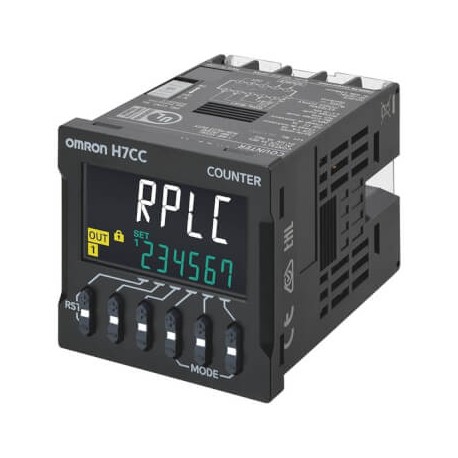

H7CC-AS H7CC7010F 700356 OMRON Digital Meter, Plug-in, Screw Terminals 48x48 mm, IP66, 6 Counting Digits, Mu..
$267.58USD
69 in stock
Key Specifications
():Y92F-45
Size:1/16 DIN (48 x 48 mm)
Type:Pre-set counter
Depth:78 mm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | Y92F-45 |
| Size | 1/16 DIN (48 x 48 mm) |
| Type | Pre-set counter |
| Depth | 78 mm |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Inputs | DC voltage, No-voltage |
| Terminal | Screw |
| Body color | Black |
| Output type | Transistor |
| Relay output | 0 |
| LCD backlight | With backlight |
| Counting range | -99999 - 999999 |
| Number of digits | 6 |
| Installation type | On-panel |
| Supply voltage AC | 100-240 V |
| Transistor output | 1 |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
Product Description
Digital counter, plug-in, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1-stage & total present counter, SPST transistor output, 100-240 VAC supply, 12 VDC aux. supply
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
