H7BX-A

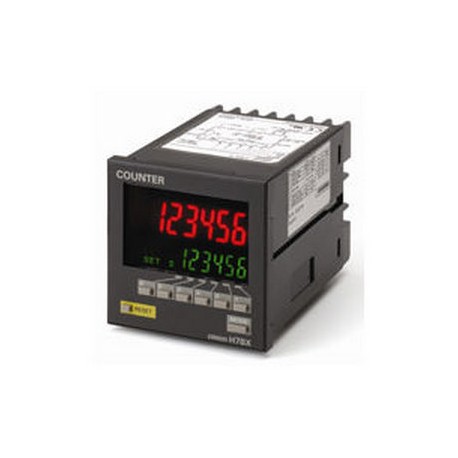

H7BX-A H7BX0001C 241306 OMRON 72x72 SPST 1 Stage 6 dig. Salt. Trans 100-240Vac
$545.64USD
54 in stock
Key Specifications
Size:72 x 72 mm
Type:Pre-set counter
Depth:100 mm
Speed:5000 Hz
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 72 x 72 mm |
| Type | Pre-set counter |
| Depth | 100 mm |
| Speed | 5000 Hz |
| Width | 72 mm |
| Height | 72 mm |
| Inputs | DC voltage, No-voltage |
| Terminal | Screw |
| Body color | Black |
| Output type | Relay, Transistor |
| Relay output | 1 |
| LCD backlight | With backlight |
| Counting range | -99999 - 999999 |
| Number of digits | 6 |
| Installation type | On-panel |
| Supply voltage AC | 100-240 V |
| Transistor output | 1 |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
Product Description
Counter, DIN 72x72 mm, digital, multifunction, preset to 1-stage, SPST-NO, 3 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
