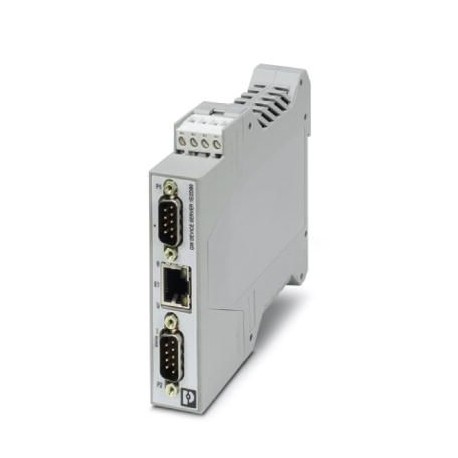

GW DEVICE SERVER 1E/2DB9
GW DEVICE SERVER 1E/2DB9 2702760 PHOENIX CONTACT Interface converters
$0.00USD
3049 in stock
Key Specifications
GTIN:4055626339160
Orderkey:2702760
(Function):Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Catalog page:Page 342 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626339160 |
| Orderkey | 2702760 |
| (Function) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Catalog page | Page 342 (C-6-2017) |
| Depth (Note) | 115 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| Height (Note) | 99 mm |
| (Power supply) | 120 Ω (configurable) |
| Country of origin | US (United States) |
| UL, USA (Function) | UL 61010-1 |
| Custom tariff number | 85176200 |
| (Ambient conditions) | 46.3 Years (Telcordia standard, 40°C temperature, 50% stress, environmental factor = 1.0) |
| Altitude (Dimensions) | < 2000 m |
| Conformance (Function) | CE-compliant |
| Type of test (Function) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Interface (Power supply) | RS-485 |
| MTBF (Ambient conditions) | 69.4 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0) |
| Noise emission (Function) | EN 61000-6-4 |
| Noise immunity (Function) | EN 61000-6-2:2005 |
| UL, USA/Canada (Function) | Class I, Div. 2, Groups A, B, C, D T4A |
| Color (Ambient conditions) | gray |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| No. of ports (Power supply) | 1 |
| Noise immunity (Dimensions) | EN 61000-6-2:2005 |
| Noxious gas test (Function) | ISA-S71.04-1985 G3 Harsh Group A |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| UL, USA (Ambient conditions) | UL 61010-1 |
| Management (Serial interface) | Web-based management |
| Pin assignment (Power supply) | |
| Supply voltage range (General) | 10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Net weight (Ambient conditions) | 125 g |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | D-SUB 9 plug |
| Standards/regulations (Function) | EN 55022, EN 55024 |
| Degree of protection (Dimensions) | IP20 |
| File format/coding (Power supply) | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Auxiliary protocols (Power supply) | ARP, DHCP (Client), PING |
| Max. current consumption (General) | 85 mA (24 V DC) |
| Protocols supported (Power supply) | TCP/IP, UDP, ASCII |
| Transmission length (Power supply) | ≤ 1200 m |
| Noise emission (Ambient conditions) | EN 61000-6-4 |
| Termination resistor (Power supply) | 120 Ω (configurable) |
| UL, USA/Canada (Ambient conditions) | Class I, Div. 2, Groups A, B, C, D T4A |
| Number of connections (Power supply) | 2 |
| Weight per Piece (excluding packing) | 125.000 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Typical current consumption (General) | 76 mA (24 V DC) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Web-based management (Serial interface) | yes |
| Electromagnetic compatibility (Function) | Conformance with EMC Directive 2014/30/EU |
| Serial transmission speed (Power supply) | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
| Electrical isolation (Ambient conditions) | IEC UL 61010-1 (VCC // Ethernet) |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Data flow control/protocols (Power supply) | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible max. (General) | 2.50 mm² |
| Conductor cross section flexible min. (General) | 0.20 mm² |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Status and diagnostic indicators (Serial interface) | |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Test voltage data interface/power supply (Ambient conditions) | 1.5 kVrms |
| Test voltage data interface/data interface (Ambient conditions) | 1.5 kVrms(50 Hz, 1 min.) |
Product Description
Serial device server for the conversion of serial data (RS-232/422/485) to Ethernet data (RJ45). Compatible with TCP and UDP protocols. COM port redirection software and Windows drivers can be downloa
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
