In Stock Hot Product
GSM18E12-P1J

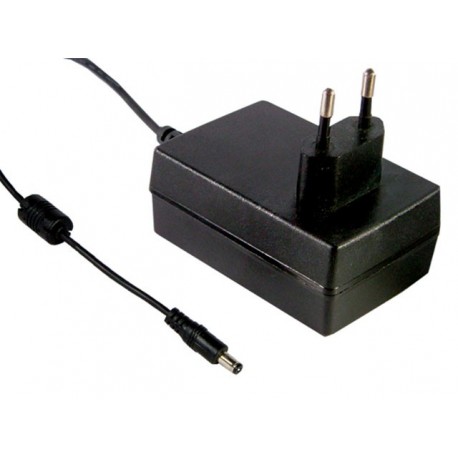

GSM18E12-P1J MEANWELL AC-DC Medical desktop single output adaptor, Output 12VDC / 1.5A, Euro 2 pin plug, EN6..
$0.00USD
4132 in stock
Key Specifications
Name:GSM18E12-P1J
Format:Wall
Series:GSM18
Approvals:EC
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | GSM18E12-P1J |
| Format | Wall |
| Series | GSM18 |
| Approvals | EC |
| Power (W) | 18,00 |
| Subformato | Pin AC European |
| Width (mm) | 54.00 |
| Height (mm) | 33.00 |
| AC input Max | 264,00 |
| AC input Min | 80,00 |
| Applications | Industrial, Medical, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Output voltage | 12,00 |
| Peak Power (W) | Eighteen |
| Input connector | European Plug |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 79.00 |
| Long Description | Wall adapter with input plug for Europe.Adaptercertified for medical applications2x MOPP (patient protection).Feeder for connection to a wall outlet.Range of universal input80-264vac47-63Hz.Output voltage12vdc.Output intensity1.5 To. Range of current output 0-1,5 a according To demand load.Power:18W.Efficiency typical:85%.Class ll without the taking of land.Consumption without load<0,1 W.Led indicator of operation.Working temperature: from-25up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:79 x 54 x 33.3 years of warranty.Manufacturer: MEAN WELL.Series GSM-AND these sources are switched in the format of a wall with input connector european.The series GSM18 have a low consumption, no-load of only 0.1 W and comply with the latest requirements of energy efficiency. |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Wall adapter with input plug for Europe.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
