In Stock Hot Product
GSC25E-350

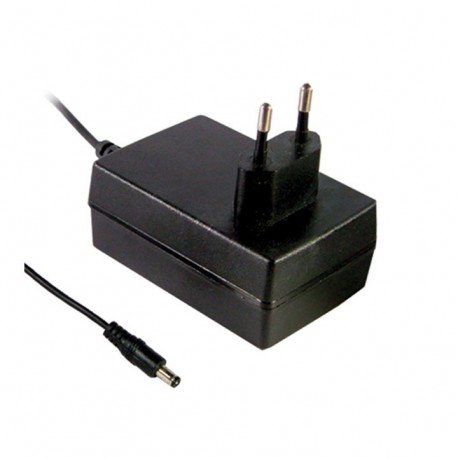

GSC25E-350 MEANWELL AC-DC Single output wall mount LED power supply (CC) with PFC, Output 72VDC / 0.35A, 2 p..
$0.00USD
3176 in stock
Key Specifications
Name:GSC25E-350
Format:Wall
Series:GSC25
Approvals:CE, ENEC
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | GSC25E-350 |
| Format | Wall |
| Series | GSC25 |
| Approvals | CE, ENEC |
| Power (W) | 25,20 |
| Subformato | IP40 |
| Width (mm) | 54.00 |
| Height (mm) | 33.00 |
| AC input Max | 277,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 25.2 |
| Input connector | European Plug |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 79.00 |
| Long Description | LED driver wall.Specially designed for powering LEDs directly in a steady stream.Format plastic box.IP40.Feeder for connection to a wall outlet.Range of universal input90-277Vca47-63Hz.Output in constant current350mA.Range of output voltage with current mode constant36 to 72Vccaccording to demand load.Power:25,2 W.Efficiency typical:89.5 per cent.Class ll without the taking of land.Factor corrector, power>0,92to 230vac at full load.Consumption without load<0,15 W.Operating temperature range of caseTcfrom-30ºCup+50ºC.Dimensions (Length x Width x Height):79 x 54 x 33mm.3 years warranty.Manufacturer: MEAN WELL.The series GSC-E are feeders in the format of a wallfor LED 25W with PFC included.With input plug european jack type output Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. Have low consumption and meet the requirements of lighting and power harmonics Class C. |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
| Output current mA | Three hundred fifty |
| Intensity of Minimum Output (mA) | 350,00 |
| Intensity of Output Maximum (mA) | 350,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver wall.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
