GS25A12-P1J

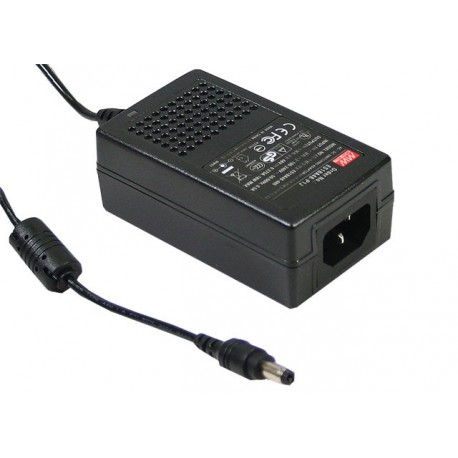

GS25A12-P1J MEANWELL AC-DC Desktop adaptor, Output 12VDC / 2.08A, Input connector IEC320-C14
$0.00USD
3754 in stock
Key Specifications
Name:GS25A12-P1J
Format:Desktop
Series:GS25
Approvals:BSMI, CCC, CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | GS25A12-P1J |
| Format | Desktop |
| Series | GS25 |
| Approvals | BSMI, CCC, CE, UL |
| Power (W) | 25,00 |
| Subformato | Encapsulated |
| Width (mm) | 54.00 |
| Height (mm) | 36.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.242,00 |
| Output voltage | 12,00 |
| Peak Power (W) | Twenty five |
| Input connector | IEC 320-C14 |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 93.00 |
| Long Description | Adapter type desktop.Format plastic box.Range of universal input90-264vac47-63Hz.Output voltage12vdc.Output intensity2A. Range of output current 0-2A according to demand load.Power:25W.Efficiency typical:84,5%.Class l non-grounded.Consumption without load<0,3 W.Working temperature: fromZeroup+50 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:93 x 54 x 36.2 years of warranty.Manufacturer: MEAN WELL.The GS series-these sources are switched in format desktop with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive.The series GS25 have a low consumption, no-load of only 0,075 W and comply with the latest energy efficiency requirements (Level V). |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Adapter type desktop.
