In Stock Hot Product
GS15E-4P1J

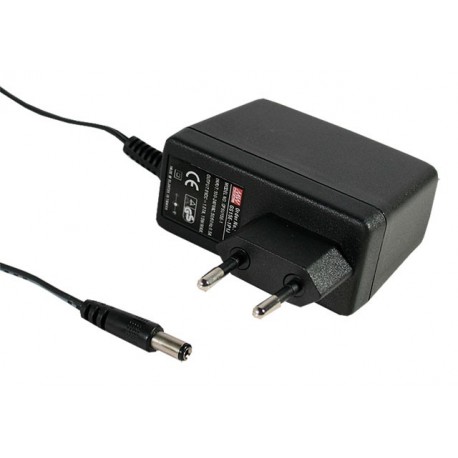

GS15E-4P1J MEANWELL AC-DC Wall mount adaptor, Output 15VDC / 1A, 2 pin Euro plug
$0.00USD
3926 in stock
Key Specifications
Name:GS15E-4P1J
Format:Wall
Series:GS15E
Approvals:EC
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | GS15E-4P1J |
| Format | Wall |
| Series | GS15E |
| Approvals | EC |
| Power (W) | 15,00 |
| Subformato | Pin AC European |
| Width (mm) | 71.00 |
| Height (mm) | 50.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 15,00 |
| Peak Power (W) | Fifteen |
| Input connector | European Plug |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 34.00 |
| Long Description | Wall adapter with input plug for Europe.Feeder for connection to a wall outlet.Range of universal input90-264vac47-63Hz.Output voltage15vdc.Output intensity1A. Range of output current 0-1A according to demand load.Power:15W.Efficiency typical:85%.Class ll without the taking of land.Consumption without load<0,075 W.Working temperature: fromZeroup+50 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:34 x 71 x 50.2 years of warranty.Manufacturer: MEAN WELL.The GS series are some of the sources switched in the format of a wall with input connector european.The series GS15 have a low consumption without load, only 0,0075 W and comply with the latest requirements of energy efficiency. |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | Taiwan |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Wall adapter with input plug for Europe.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
