In Stock Hot Product
GPS2BHAM

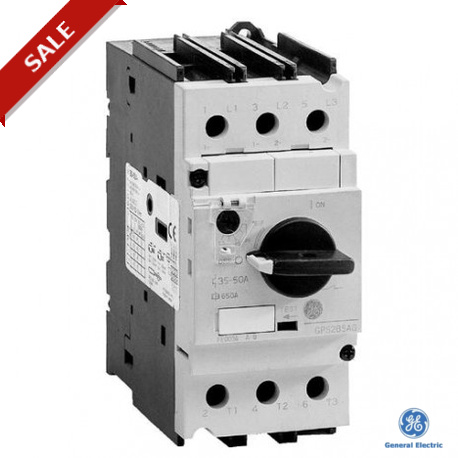

GPS2BHAM 101250 GENERAL ELECTRIC MANUAL MOTOR STARTER T+M PROT. GPS2 11-16A HIGH BREAKING
$0.00USD
3330 in stock
Key Specifications
Pack:1
Series:Surion - GPS2B - Thermal and magnetic protection (Ie max 63A)
Capacity:GPS2BH - High breaking capacity
Rated current (A):16 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pack | 1 |
| Series | Surion - GPS2B - Thermal and magnetic protection (Ie max 63A) |
| Capacity | GPS2BH - High breaking capacity |
| Rated current (A) | 16 A |
| ETIM 5.0 (DIMENSIONS) | EC000074 |
| ETIM 6.0 (DIMENSIONS) | EC000074 |
| Weight (SPECIFICATIONS) | 0.81 kg |
| Trip class IEC 60947-4-1 | Class 10 |
| Thermal current setting range (A) | 11 - 16 A |
| Instantaneous short-circuit release (A) | 208 A |
| Rated power 3 phase motors at 400Vac Pn (kW) | 7.5 kW |
| Rated power 3 phase motors at 440Vac Pn (kW) | 7.5 kW |
| Rated power 3 phase motors at 220/230Vac Pn (kW) | 3.7/4 kW |
| Rated power 3 phase motors at 500/525Vac Pn (kW) | 10 kW |
| Rated power 3 phase motors at 660/690Vac Pn (kW) | 11 kW |
| Rated service short-circuit breaking cap 400V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 440V Ics kA | 36 kA |
| Rated service short-circuit breaking cap 600V Ics kA | 5 kA |
| Rated service short-circuit breaking cap 690V Ics kA | 5 kA |
| Rated ultimate short-circuit breaking cap 400V Icu kA | 50 kA |
| Rated ultimate short-circuit breaking cap 440V Icu kA | 50 kA |
| Rated ultimate short-circuit breaking cap 600V Icu kA | 5 kA |
| Rated ultimate short-circuit breaking cap 690V Icu kA | 5 kA |
| Rated service short-circuit breaking cap 220/230V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 500/525V Ics kA | 38 kA |
| Rated ultimate short-circuit breaking cap 220/230V Icu kA | 100 kA |
| Rated ultimate short-circuit breaking cap 500/525V Icu kA | 12 kA |
