In Stock Hot Product
GPS1MHAM

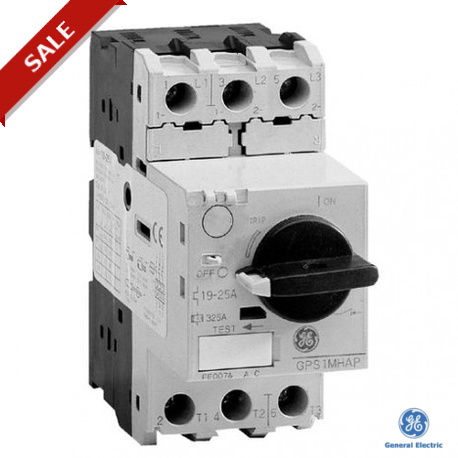

GPS1MHAM 101291 GENERAL ELECTRIC MANUAL MOTOR STARTER MAG.PROT. GPS1 16A HIGH BREAKING
$0.00USD
3619 in stock
Key Specifications
Pack:5
Series:Surion - GPS1M - Magnetic protection (Ie max 32A)
Capacity:GPS1MH - High breaking capacity
Rated current (A):16 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pack | 5 |
| Series | Surion - GPS1M - Magnetic protection (Ie max 32A) |
| Capacity | GPS1MH - High breaking capacity |
| Rated current (A) | 16 A |
| ETIM 5.0 (DIMENSIONS) | EC000074 |
| ETIM 6.0 (DIMENSIONS) | EC000074 |
| Weight (SPECIFICATIONS) | 0.36 kg |
| Instantaneous short-circuit release (A) | 208 A |
| Rated power 3 phase motors at 400Vac Pn (kW) | 7.5 kW |
| Rated power 3 phase motors at 440Vac Pn (kW) | 7.5 kW |
| Rated power 3 phase motors at 220/230Vac Pn (kW) | 3.7/4 kW |
| Rated power 3 phase motors at 500/525Vac Pn (kW) | 10 kW |
| Rated power 3 phase motors at 660/690Vac Pn (kW) | 11 kW |
| Rated service short-circuit breaking cap 400V Ics kA | 38 kA |
| Rated service short-circuit breaking cap 440V Ics kA | 25 kA |
| Rated service short-circuit breaking cap 600V Ics kA | 3 kA |
| Rated service short-circuit breaking cap 690V Ics kA | 3 kA |
| Rated ultimate short-circuit breaking cap 400V Icu kA | 50 kA |
| Rated ultimate short-circuit breaking cap 440V Icu kA | 35 kA |
| Rated ultimate short-circuit breaking cap 600V Icu kA | 4 kA |
| Rated ultimate short-circuit breaking cap 690V Icu kA | 4 kA |
| Rated service short-circuit breaking cap 220/230V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 500/525V Ics kA | 8 kA |
| Rated ultimate short-circuit breaking cap 220/230V Icu kA | 100 kA |
| Rated ultimate short-circuit breaking cap 500/525V Icu kA | 10 kA |
Product Description
GPS1MHAM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
