GPS1MHAH

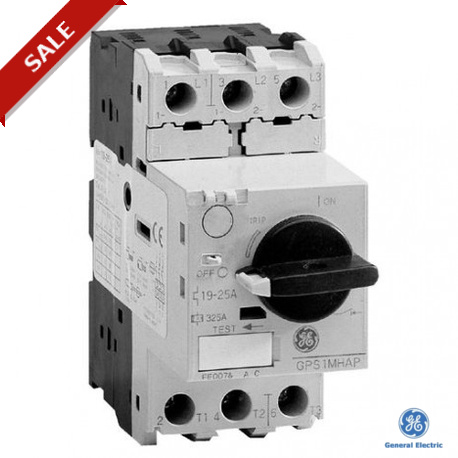

GPS1MHAH 101287 GENERAL ELECTRIC MANUAL MOTOR STARTER MAG.PROT. GPS1 4A HIGH BREAKING
$0.00USD
3809 in stock
Key Specifications
Pack:5
Series:Surion - GPS1M - Magnetic protection (Ie max 32A)
Capacity:GPS1MH - High breaking capacity
Rated current (A):4 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Pack | 5 |
| Series | Surion - GPS1M - Magnetic protection (Ie max 32A) |
| Capacity | GPS1MH - High breaking capacity |
| Rated current (A) | 4 A |
| ETIM 5.0 (DIMENSIONS) | EC000074 |
| ETIM 6.0 (DIMENSIONS) | EC000074 |
| Weight (SPECIFICATIONS) | 0.36 kg |
| Instantaneous short-circuit release (A) | 52 A |
| Rated power 3 phase motors at 400Vac Pn (kW) | 1.5 kW |
| Rated power 3 phase motors at 440Vac Pn (kW) | 1.1/1.5 kW |
| Rated power 3 phase motors at 220/230Vac Pn (kW) | 0.55/0.75 kW |
| Rated power 3 phase motors at 500/525Vac Pn (kW) | 1.5/2.2 kW |
| Rated power 3 phase motors at 660/690Vac Pn (kW) | 2.2 kW |
| Rated service short-circuit breaking cap 400V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 440V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 600V Ics kA | 6 kA |
| Rated service short-circuit breaking cap 690V Ics kA | 6 kA |
| Rated ultimate short-circuit breaking cap 400V Icu kA | 100 kA |
| Rated ultimate short-circuit breaking cap 440V Icu kA | 100 kA |
| Rated ultimate short-circuit breaking cap 600V Icu kA | 8 kA |
| Rated ultimate short-circuit breaking cap 690V Icu kA | 8 kA |
| Rated service short-circuit breaking cap 220/230V Ics kA | 100 kA |
| Rated service short-circuit breaking cap 500/525V Ics kA | 100 kA |
| Rated ultimate short-circuit breaking cap 220/230V Icu kA | 100 kA |
| Rated ultimate short-circuit breaking cap 500/525V Icu kA | 100 kA |
