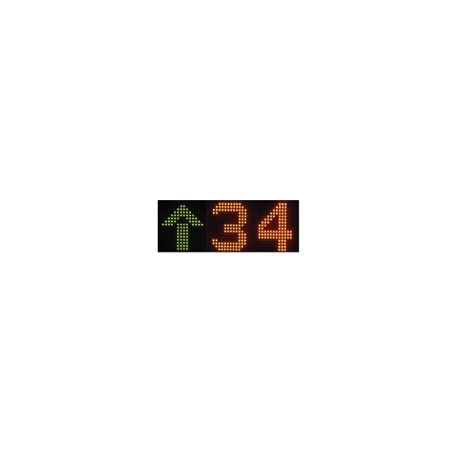

Dupline®Display forCarparkType GP 6763 0109 / 110 / 111 / 116• Brightly lit green and red LEDs• Display built into robust aluminium box• RS485 communication• Internal dipswitch for selection of digit type• cULus approvedProduct DescriptionOrdering key GP 6763 01XXXThe GP6763 01xx display is part of a car park system which, among other things, contains a GP3482 9091 monitor and several sensor types with type numbers GP6220220xandGP62402224.By means of LEDs, theGP6763 01xx signals the direction and/or number of free parking bays.Because of the method of communication, it is possible tointerconnectseveral dis- plays on the same network. The display is available in indoor and outdoor versions.Type: Dupline® Carpark DisplayTypeGeneral SpecificationsGeneral Specifications (cont.)TechnologyLED SMDMatrix resolutionGP6763010916 x 48 pixel GP6763011616 x 64 pixel GP67630110 / 111 16 x 32 pixelLED colour Red and green (two colour combination: Amber)Viewing distance Up to 50 m.Symbols configurationDigits / characters Depends of the selected displaysCross & Arrow symbolsYes (configurable and animated)Disabled symbolGP6763 0109 / 116NoGP6763 0110 / 111YesBrightness controlAutomatic (light sensor)Interface RS485Baudrate 4800Protocol Carpark CasingAluminium EnvironmentOperating temperature-15° to 50°CDegree of protection IP30 (indoor) IP55 (outdoor)Humidity (non condensing)0 - 90% relative humidityPower supply18-24 VDCConsumption (maximum/typical)GP6763 0109 / 110 / 111 60 W / 40W GP6763 0116100 W / 60WDimensions (h x w x d) GP6763 0116(A)Indoor version 145 x 430 x 60 mmOutdoor version (A)185 x 490 x 92 mmGP6763 0109 / 110 / 111(A)Indoor version 145 x 335 x 60 mmOutdoor version (A)185 x 395 x 92 mmWeightGP6763 0109(A)Indoor version 1575 gOutdoor version (A)2000 gGP6763 0110 / 111(A)Indoor version 1500 gOutdoor version (A)1800 gGP6763 0116(A)Indoor version 2100 gOutdoor version (A)2400 gApprovalcULus (UL60950)Type SelectionGP6763 0109 1 Arrow + 2 DigitsGP6763 0109A1 Arrow + 2 Digits outdoorGP6763 0110 1 Arrow + 1 Digit + HCP (Right)GP6763 0110A1 Arrow + 1 Digit + HCP (Right) outdoorGP6763 0111 1 Arrow + 1 Digit + HCP (Left)GP6763 0111A1 Arrow + 1 Digit + HCP (Left) outdoorGP6763 0116 1 Arrow + 3 DigitsGP6763 0116A1 Arrow + 3 Digits outdoorSpecifications are subject to change without notice (23.06.2015) 1
