GP50A13A-R1B

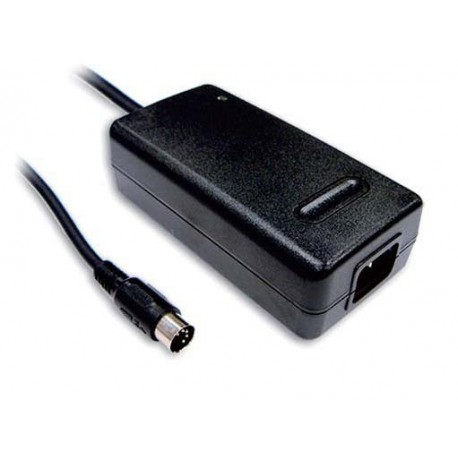

GP50A13A-R1B MEANWELL AC-DC Triple Output Industrial adaptor, Input with 3 pole IEC320-C14 socket Output 5VD..
$0.00USD
3346 in stock
Key Specifications
Name:GP50A13A-R1B
State:New
Format:Desktop
Series:GP50A
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | GP50A13A-R1B |
| State | New |
| Format | Desktop |
| Series | GP50A |
| Output 1 | -5 |
| Output 2 | +5 |
| Output 3 | +12 |
| Approvals | CE, TÜV, UL |
| Power (W) | 46,50 |
| Subformato | Encapsulated |
| Width (mm) | 75.5 |
| Height (mm) | Forty three |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 4.242,00 |
| Peak Power (W) | 46.5 |
| Input connector | IEC 320-C14 |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | One hundred forty six |
| Long Description | Source Switched type desktop adapter.Range of Universal Input90-264vac47-63Hz.Output:-5vdc:Minimum intensity of output0.1 To.Maximum output current0,5Amps.+5vdc:Minimum intensity of output0A.Maximum output currentFourAmps.+12vdc:Minimum intensity of output0.3 To.Maximum output currentTwoAmps.Power:46,5 W.Efficiency typical:Eighty four%.Class I Insulation with earth.Consumption without load<0,3 W.Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:146 x 75.5 x 43.3 years of warranty.Manufacturer: MEAN WELL.The GP series are some of the sources switched in format desktop with input connector europeanIEC320-C14and output connector type Jack R1B: DIN5P standard.The series GP50 have a low consumption, no-load of only 0.3 W, and comply with the latest energy efficiency requirements (Level Vl). |
| Output connector | R1B |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| You Need To Load Minimum | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Source Switched type desktop adapter.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
