GKDS-EX-10 BK 9RZ

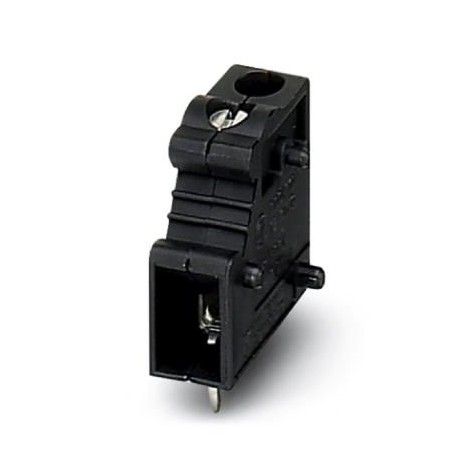

GKDS-EX-10 BK 9RZ 1710818 PHOENIX CONTACT PCB terminal block
$0.00USD
3329 in stock
Key Specifications
GTIN:4055626182322
Orderkey:1710818
Packing unit:1
Custom tariff number:85369010
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626182322 |
| Orderkey | 1710818 |
| Packing unit | 1 |
| Custom tariff number | 85369010 |
| Pitch (Key Commercial Data) | 7.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Range of articles (Dimensions) | GKDS-EX |
| Nominal current IN (Dimensions) | 20 A |
| Solder pin surface (Dimensions) | |
| Number of positions (Dimensions) | 10 |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Rated voltage (III/2) (Dimensions) | 630 V |
| Hole diameter (Key Commercial Data) | 1.4 mm |
| Solder pin [P] (Key Commercial Data) | 5 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Flammability rating according to UL 94 (General) | V2 |
| Flammability rating according to UL 94 (Dimensions) | V2 |
Product Description
Terminal block for printed circuit board, nominal current: 20 A, dimensioning voltage (III/2): 630 V, nominal cross-section: 2.5 mm², Number of potentials: 10, Number of rows: 1, Number of poles per r
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
