GFKC 2,5/ 2-ST-7,5

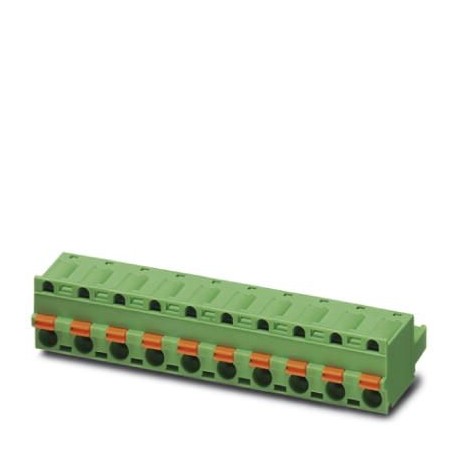

GFKC 2,5/ 2-ST-7,5 1939413 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4570 in stock
Key Specifications
GTIN:4017918877521
Orderkey:1939413
Catalog page:Page 340 (C-1-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918877521 |
| Orderkey | 1939413 |
| Catalog page | Page 340 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| (Packaging information) | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Note (Connection capacity) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch (Key Commercial Data) | 7.5 mm |
| Note (Packaging information) | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Locking (Key Commercial Data) | without |
| Rated current (Item properties) | 12 A |
| Plug-in system (Key Commercial Data) | CLASSIC COMBICON |
| Weight per Piece (excluding packing) | 3.860 g |
| Type of contact (Key Commercial Data) | Female connector |
| Contact material (Connection capacity) | Cu alloy |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Push-in spring connection |
| Range of articles (Key Commercial Data) | GFKC 2,5/..-ST |
| (Air clearances and creepage distances) | No hazardous substances above threshold values |
| Stripping length (Electrical parameters) | 10 mm |
| Number of positions (Key Commercial Data) | 2 |
| Number of potentials (Key Commercial Data) | 2 |
| Number of connections (Key Commercial Data) | 2 |
| Pitch (Material data – actuating element) | 7.5 mm |
| Insulating material (Material data - contact) | PA |
| Insulating material (Material data - housing) | PBT |
| Rated surge voltage (III/2) (Item properties) | 6 kV |
| Surface characteristics (Connection capacity) | hot-dip tin-plated |
| Type of packaging (Dimensions for the product) | packed in cardboard |
| Brief article description (Key Commercial Data) | Printed-circuit board connector |
| Pieces per package (Dimensions for the product) | 50 |
| Dimension a (Material data – actuating element) | 7.5 mm |
| Width [ w ] (Material data – actuating element) | 13.2 mm |
| China RoHS (Air clearances and creepage distances) | Environmentally friendly use period: unlimited = EFUP-e |
| Height [ h ] (Material data – actuating element) | 15 mm |
| Length [ l ] (Material data – actuating element) | 25.6 mm |
| Rated insulation voltage (III/2) (Item properties) | 630 V |
| Insulating material group (Material data - contact) | I |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| CTI according to IEC 60112 (Material data - housing) | 600 |
| Conductor cross section solid (Electrical parameters) | 0.2 mm² ... 2.5 mm² |
| Denomination packing units (Dimensions for the product) | Pcs. |
| Insulating material group (General product information) | I |
| Conductor cross section flexible (Electrical parameters) | 0.2 mm² ... 2.5 mm² |
| Rated surge voltage (II/2) (General product information) | 6 kV |
| Dimensional drawing (Material data – actuating element) | |
| Rated surge voltage (III/2) (General product information) | 6 kV |
| Rated surge voltage (III/3) (General product information) | 6 kV |
| Cylindrical gauge a x b / diameter (Electrical parameters) | 2.8 mm x 2.0 mm / 2.3 mm |
| Conductor cross section AWG / kcmil (Electrical parameters) | 24 ... 12 |
| Metal surface contact area (top layer) (Connection capacity) | Tin (4 - 8 µm Sn) |
| Rated insulation voltage (II/2) (General product information) | 1000 V |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (4 - 8 µm Sn) |
| Rated insulation voltage (III/2) (General product information) | 630 V |
| Rated insulation voltage (III/3) (General product information) | 400 V |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Flammability rating according to UL 94 (Material data - housing) | V0 |
| Height (without solder pin) (Material data – actuating element) | 15 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve (Electrical parameters) | 0.5 mm² ... 1.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Female, number of potentials: 2,
