GE 35/2 BU

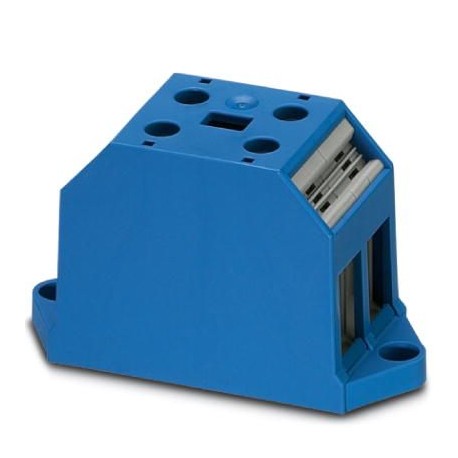

GE 35/2 BU 3071078 PHOENIX CONTACT Device terminal block
$0.00USD
4973 in stock
Key Specifications
GTIN:4046356482363
Note:Made to Order (non-returnable)
Orderkey:3071078
Catalog page:Page 561 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356482363 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3071078 |
| Catalog page | Page 561 (C-1-2017) |
| Packing unit | 25 pc |
| Width (General) | 34.8 mm |
| Height (General) | 44.9 mm |
| Length (General) | 83.7 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 25 pc |
| Screw thread (Dimensions) | M6 |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Stripping length (Dimensions) | 16 mm |
| Connection method (Dimensions) | Screw connection |
| Potentials (Key Commercial Data) | 2 |
| Tightening torque max (Dimensions) | 4 Nm |
| Tightening torque, min (Dimensions) | 3.5 Nm |
| Weight per Piece (excluding packing) | 108.000 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 125 A |
| Nominal voltage UN (Key Commercial Data) | 630 V |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 2 |
| Rated surge voltage (Key Commercial Data) | 8 kV |
| Maximum load current (Key Commercial Data) | 125 A (with 35 mm² conductor cross section) |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 35 mm² |
| Number of connections (Key Commercial Data) | 4 |
| Conductor cross section AWG max. (Dimensions) | 2 |
| Conductor cross section AWG min. (Dimensions) | 18 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1/IEC 60998 |
| Conductor cross section solid max. (Dimensions) | 35 mm² |
| Conductor cross section solid min. (Dimensions) | 0.75 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 35 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.75 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1/IEC 60998 |
| Max. AWG conductor cross section, flexible (Dimensions) | 2 |
| Min. AWG conductor cross section, flexible (Dimensions) | 18 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.75 mm² |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 4.06 W |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.75 mm² |
Product Description
Device terminal, connection type: Screw connection, number of connections: 4, number of poles: 2, cross-section: 0.75 mm² - 35 mm², AWG: 18 - 2, width: 34.8 mm, height: 44.9 mm, color: blue, mounting
