GAZS100B

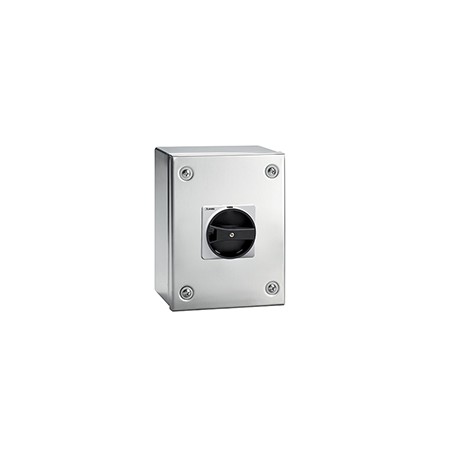

GAZS100B LOVATO 3P SWITCH 100A-ST/ST ENCL-BLACK HANDLE
$0.00USD
4212 in stock
Key Specifications
:AC21A
HS Code:85365080
ETIM 8.0:
Order code:GAZS100B
Supplier Information
LOVATO ELECTRIC
Products: 13120
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AC21A | |
| HS Code | 85365080 |
| ETIM 8.0 | |
| Order code | GAZS100B |
| Weight [g] | 2361 |
| Max altitude | m |
| Volume [cm³] | 6069 |
| Mechanical life | cycles |
| Number of poles | Nr. |
| Bar code [EAN13] | 8013975235669 |
| Pollution degree | |
| Qty. per package | 1 |
| Frontal IP degree | |
| Product designation | |
| Electrical life AC21A | cycles |
| Operating voltage type | |
| IP degree of protection | |
| Package dimensions [mm] | 210X170X170 |
| Product type designation | |
| Making capacity AC23A 400V | A |
| Breaking capacity AC23A 400V | A |
| Power dissipation per pole max | W |
| Multiple qty. of packs per order | 1 |
| Rated insulation voltage Ui IEC/EN | V |
| Short-circuit protection with fuse | Class/A |
| Rated impulse withstand voltage Uimp | kV |
| Conditional short-circuit current (rms) | kA |
| IEC Conventional free air thermal current Ith | A |
Product Description
IEC/EN type IP65 stainless steel AISI 304 enclosure switch disconnector, three-pole. With rotating black handle, 100A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
