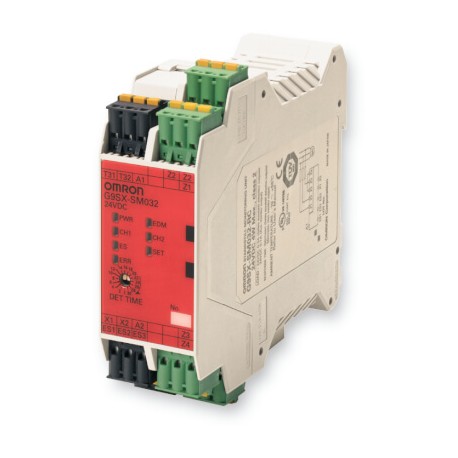

G9SX-SM032-RC
G9SX-SM032-RC G9SX6027R 353669 OMRON Module Sec. Stop Monitoring 3Outputs 2AUX 24Vdc Screwless
$0.00USD
4677 in stock
Key Specifications
Item:G9SX-SM032-_
Input voltage:Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max.
Safety outputs1:Auxiliary outputs1
Auxiliary output:Sourcing output (PNP)Load current: 100 mA DC max.
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | G9SX-SM032-_ |
| Input voltage | Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max. |
| Safety outputs1 | Auxiliary outputs1 |
| Auxiliary output | Sourcing output (PNP)Load current: 100 mA DC max. |
| Internal impedance | Standstill detection input: approx, 660 kΩEDM input: approx. 2.8 kΩ |
| 3 (Semi-conductors) | 2 (Semi-conductors) |
| Rated supply voltage | 24 VDC |
| Spring-cage terminals | G9SX-SM032-RC |
| Safety standstill detection output | Sourcing output (PNP)Load current: 300 mA DC max. |
| Maximum power supply frequency for AC induction motor | 60 Hz max. |
Product Description
Standstill monitoring unit with spring-cage terminals
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Safe Standstill monitoring unit based on Back EMF operation for two- and three phase systems.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
