G7TC-ID16 DC24

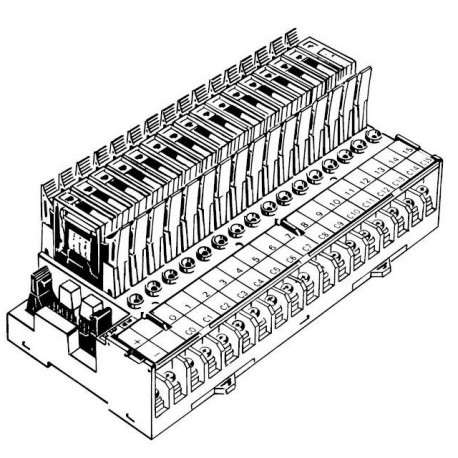

G7TC-ID16 DC24 G7TC7011G 377351 OMRON Module 16 G7T Input Relays 24Vdc NPN
$574.72USD
55 in stock
Key Specifications
(Specifications & ordering info):Spacer
8 (Specifications & ordering info):NPN (+ common)
24 (Specifications & ordering info):21
AC (Specifications & ordering info):100/(110)
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (Specifications & ordering info) | Spacer |
| 8 (Specifications & ordering info) | NPN (+ common) |
| 24 (Specifications & ordering info) | 21 |
| AC (Specifications & ordering info) | 100/(110) |
| DC (Specifications & ordering info) | 12 |
| Item (Specifications & ordering info) | G7TC-IA16(Input, AC coil) |
| Type (Specifications & ordering info) | Order code |
| (1:2) (Specifications & ordering info) | XW2Z-RI⬜-⬜-D⬜ |
| (1:3) (Specifications & ordering info) | XW2Z-R⬜C-⬜-⬜ |
| 0.5 m (Specifications & ordering info) | PFP-50N |
| Input (Specifications & ordering info) | 16 |
| Model (Specifications & ordering info) | Standard number |
| Output (Specifications & ordering info) | 16 |
| Socket (Specifications & ordering info) | P7TF-05 |
| Weight (Specifications & ordering info) | Approx. 640 g |
| 100/110 (Specifications & ordering info) | 5 |
| 200/(220) (Specifications & ordering info) | 4.1/– |
| G7TC-ID16 (Specifications & ordering info) | CSA C22.2No.14 |
| G7TC-OC16 (Specifications & ordering info) | UL508 |
| LED color (Specifications & ordering info) | Red |
| Short Bar (Specifications & ordering info) | G78-04 |
| Appearance (Specifications & ordering info) | Name |
| Case color (Specifications & ordering info) | Transparent red |
| Rated load (Specifications & ordering info) | 1 A at 24 VDC |
| Contact form (Specifications & ordering info) | SPST-NO × 16 |
| For AC relay (Specifications & ordering info) | 100 (110) V AC |
| For DC relay (Specifications & ordering info) | 12/24 V DC |
| 100/(110) VAC (Specifications & ordering info) | G7TC-IA16 |
| At rated load (Specifications & ordering info) | 1,800 operations/h |
| Classification (Specifications & ordering info) | For input |
| MIL connectors (Specifications & ordering info) | (1:1) |
| Noise immunity (Specifications & ordering info) | Noise level: 1.5 kV; pulse width:100 ns to 1 μs |
| To I/O devices (Specifications & ordering info) | 50 m max. (reference value, for2-mm2CVV cable) |
| Contact material (Specifications & ordering info) | Au cladding + Ag |
| PNP (– common) (Specifications & ordering info) | 12 VDC |
| Shock resistance (Specifications & ordering info) | 200 m/s2 |
| Tensile strength (Specifications & ordering info) | No damage when a tensile force of 49 N is applied in each direction.In the direction of the track, the tensile strength is 9.8 N min. |
| Contact mechanism (Specifications & ordering info) | Bifurcated crossbar contact |
| Rated voltage (V) (Specifications & ordering info) | 50 Hz |
| Coil surgeabsorber (Specifications & ordering info) | Varistor |
| Dielectricstrength (Specifications & ordering info) | Between coil and contact |
| G7TC-ID16G7TC-IA16 (Specifications & ordering info) | UL508 |
| I/O classification (Specifications & ordering info) | I/O points |
| Rated carry current (Specifications & ordering info) | 1 A |
| Vibrationresistance (Specifications & ordering info) | 10 to 55 to 10 Hz with 0.5-mmsingle amplitude (1.0-mm double amplitude) |
| Electrical endurance (Specifications & ordering info) | 10,000,000 operations (at 10 mA)50,000 operations (at 1 A) |
| Insulationresistance (Specifications & ordering info) | 100 MΩ (at 500 VDC) |
| Mechanical endurance (Specifications & ordering info) | 50,000,000 operations |
| Cable with connectors (Specifications & ordering info) | Fujitsu connectors |
| Cable with Loose Wires (Specifications & ordering info) | XW2Z-RA⬜C |
| Max. switching current (Specifications & ordering info) | 1 A |
| Max. switching voltage (Specifications & ordering info) | 250 VAC, 125 VDC |
| Max. switchingfrequency (Specifications & ordering info) | Mechanical limit |
| Ambient operatinghumidity (Specifications & ordering info) | 35% to 85% (with no icing or condensation) |
| Output Short-Circuit Module (Specifications & ordering info) | G77-S |
| Ambient operatingtemperature (Specifications & ordering info) | 0 to 55°C |
| Between same polaritycontacts (Specifications & ordering info) | 1,000 VAC, 50/60 Hz for 1 minute |
| I/O terminaltightening torque (Specifications & ordering info) | Tightening strength: 0.98 N·m;Tensile strength 49 N per minute |
| Cable with Loose Wire and CrimpTerminals (Specifications & ordering info) | XW2Z-RY⬜C |
| Release time2Ambient temperature: 23°C. (Specifications & ordering info) | 15 ms max. |
| Tighteningtorque for external connections (Specifications & ordering info) | 0.78 to 1.18 N·m |
| Contact resistance2Measurement:1 A at 5 VDC. (Specifications & ordering info) | 50 mΩ max. |
| Must Operatetime2Ambient temperature: 23°C. (Specifications & ordering info) | 15 ms max. |
| Rated current between positive andnegative terminal blocks (Specifications & ordering info) | Input circuit current of controller(PLC or other) × number of ON points |
| Rated voltage between positive andnegative terminal blocks (Specifications & ordering info) | Rated voltage of controller’s(PLC or other) input circuit |
| Error rate (referencevalue)2The above values are for a switching frequency of 120operations/min. (Specifications & ordering info) | 100 μA at 1 V |
| Between paired connectors2Thisis between connector pin No. 10 and 20, and between connector pinNo. 9 and 19. (Specifications & ordering info) | 250 VAC, 50/60 Hz for 1 minute |
| Cable length2Connectingcables up to 5 m are available as standard products. For longercables, enquire separately. (Specifications & ordering info) | To controller |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refer to Connecting Cables for details.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
