In Stock Hot Product
G7S-3A3B-E DC24

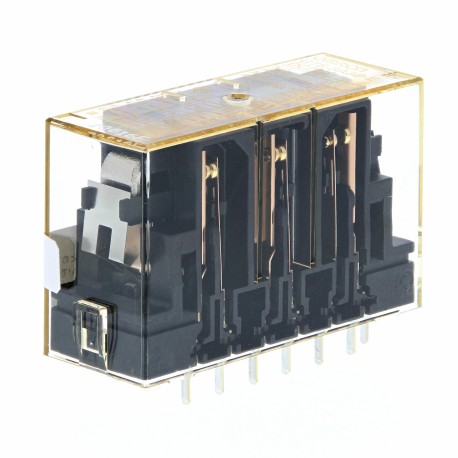

G7S-3A3B-E DC24 G7SE0001G 121503 OMRON Safety Relay 3PST-NA 3PST-NC 6 pole 10A 24Vdc
$34.52USD
336 in stock
Key Specifications
Item (Specifications & ordering info):Resistive load
Type (Specifications & ordering info):LED indicator
Model (Specifications & ordering info):P7S-14F-END
24 VDC (Specifications & ordering info):30
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item (Specifications & ordering info) | Resistive load |
| Type (Specifications & ordering info) | LED indicator |
| Model (Specifications & ordering info) | P7S-14F-END |
| 24 VDC (Specifications & ordering info) | 30 |
| Standard (Specifications & ordering info) | Flux-tight |
| Electrical (Specifications & ordering info) | 100,000 operations min. (at the rated load and approx. 1,800 operations/h) |
| NC Contact (Specifications & ordering info) | AC15 AC240V 3A, DC13 DC24V 2A |
| NC contact (Specifications & ordering info) | 6 A |
| Rated load (Specifications & ordering info) | 1,800 operations/h |
| Durability6 (Specifications & ordering info) | Mechanical |
| Back-mounting (Specifications & ordering info) | PCB terminals |
| Rated voltage (Specifications & ordering info) | Rated current (mA)1 |
| Release time2 (Specifications & ordering info) | 50 ms max. |
| Track-mounting (Specifications & ordering info) | Track mounting and screw mountingpossible |
| Operating time5 (Specifications & ordering info) | 50 ms max. |
| 3PST-NO, 3PST-NC (Specifications & ordering info) | G7S-3A3B-E |
| Continuous current (Specifications & ordering info) | 10 A |
| Contact resistance4 (Specifications & ordering info) | 100 mΩ max. |
| Dielectric strength (Specifications & ordering info) | 2000 VAC for 1 min. between terminals |
| Rated carry current (Specifications & ordering info) | NO contact |
| Insulation resistance (Specifications & ordering info) | 100 MΩ min. |
| Maximum switching current (Specifications & ordering info) | NO contact |
| Maximum switching voltage (Specifications & ordering info) | 250 VAC, 30 VDC |
| Ambient operating humidity (Specifications & ordering info) | 5% to 85% |
| Maximum operating frequency (Specifications & ordering info) | Mechanical |
| Ambient operating temperature (Specifications & ordering info) | -25 to 70°C (with no icing or condensation) |
| Inductive load switching capability7(IEC60947-5-1) (Specifications & ordering info) | NO Contact |
Product Description
Safety relay, plug-in, 3PST-NO, 3PST-NC, 10 A, forcibly-guided contacts, 24 VDC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Type
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
