G43111120

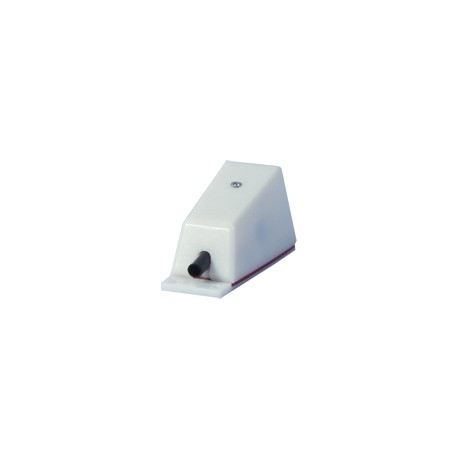

Light Intensity SensorType G 4311 1120Duline®FieldbusInstallationbus• AnaLink transmitter with built-in light intensity sensor• Measuring range: 0.1 LUX to 100 kLUX• Uses only 1 channel• Channel coding by GAP 1605• Easily mountable• Supplied by Dupline®Product DescriptionOrdering KeyG 4311 1120The analog light transmitter G43111120 makes it possible toconvertanalog lightval- ues to be transmitted on the Dupline®bus.The light value can be trans- mitted in parallel on 8 chan- nels, which are independent- ly programmable, and can thereby be compared to 8 differentthresholdvalues inthe Channel Generator G38900015 version 2.02 and activate field units accordingly. The design of the LUX makes it possible to mount the sensor discreetly, e.g. on walls.No external power supply is required, since the sensor is supplied from the Dupline® signal wires.Type: Dupline® LUX- housing TransmitterNo. of ChannelsNo. of InputsType SelectionSupply Ordering no.By Dupline®G 4311 1120Supply SpecificationsPower SupplySupplied by Dupline®Rated operational current typ. 750 µAGeneral SpecificationsChannel programming By GAP 1605 and special cable GAP-TPH-CABChannel assignment1 channel, freely programmableEnvironmentDegree of protection IP 44Operating temperature -10 to +60°C (14 to +140°F)ConnectionScrew terminal Pin 1: GND (grey) Pin 2: Dupline® (red)Sensor SpecificationsLight measuring range0.1 LUX to 100 kLUX Characteristic deviation-10% to + 10% Measuring errror over temp. range -30% to + 30% Response time6s to 34sHousingMaterial Housing Lexan (Polycarbonate) Plug NylonColor Translucent / OffwhiteDimensions (W x H x D) 40 x 83 x 43 mmSpecifications are subject to change without notice (12.01.2009) 1Dupline®is a registered trademark. A product of the CARLO GAVAZZI Group
