G32101113

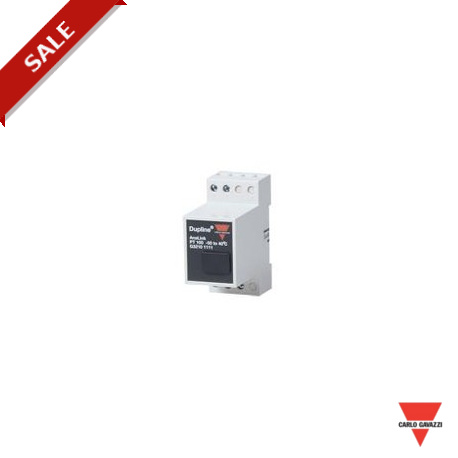

Transmitter forAnalog Pt-100Temperature SignalTypes G 3210 1111, G 3210 1112, G 3210 1113Duline®FieldbusInstallationbus• AnaLink transmitter for 3-wire Pt-100 input• Built-in cable compensation• Built-in signal linearization• Temperature range:G 3210 1111: -50 to +40°C (-58 to +104°F)G 3210 1112: +30 to +120°C (+86 to +248°F) G 3210 1113: -10 to +100°C (+14 to 212°F)• Uses only one channel• Supplied by Dupline®• Channel coding by GAP 1605• H2-housing• For mounting on DIN-rail in accordance with EN 50 022Product DescriptionOrdering KeyG 3210 1111AnaLink transmitter for con- nection of external 3-wire Pt-100 temperature transducer. The module measures the temperature and transmits the value to the controller G3890 0030, in which the tem- peraturesfromalltransmit-ters are loggedand printed out and/or read from a PC.The moduleissuppliedby the Dupline®signal which means easy installation and flexibility for future expansion.Type: Dupline® H2 Housing Temperature rangeTypeSelectionSupply: Ordering no. Ordering no. Ordering no.Range: -50 to +40°CRange: +30 to +120°CRange: -10 to +100°CBy Dupline® G 3210 1111 G 3210 1112G 3210 1113InputSpecificationsSignal input 3-wire Pt-100Temperature range G 3210 1111: -50 to +40°C G 3210 1112: +30 to +120°C G 3210 1113: -10 to +100°CResolution 8 bits (~0.35°C/LSB)(G3210 1113: (0.43°C/LSB)) Inaccuracy≤ 0.5°C (G32101113: ± 0.6°C)(ambient temperatureG 3210 111.: 25°C) Temperature drift ≤ 0.02°C/°K(Δ ambient temperatureG 3210 111.) Cable length ≤ 5 mResponse time256 pulse trains(~18 s @ 64 ch.)Supply SpecificationsGeneral SpecificationsChannel programming By GAP 1605Channel assignment1 channelfreely programmableEnvironmentDegree of protection IP 20Pollution degree3 (IEC 60664)Operating temperature 0 to +50°C (+32 to +122°F) Storage temperature -50 to +85°C (-58 to +185°F)Humidity (non-condensing) 20 to 80% RHMechanical resistanceShock15 G (11 ms) Vibration2 G (6 to 55 Hz)DimensionsMaterial(See Technical Information) H2-housingWeight90 gCurrent consumption ≤ 1.8 mA (from Dupline®)Power dissipation ≤ 10 mWSpecifications are subject to change without notice (30.11.2006)1Dupline®is a registered trademark. A product of the CARLO GAVAZZI Group
