FX4/0N-0F

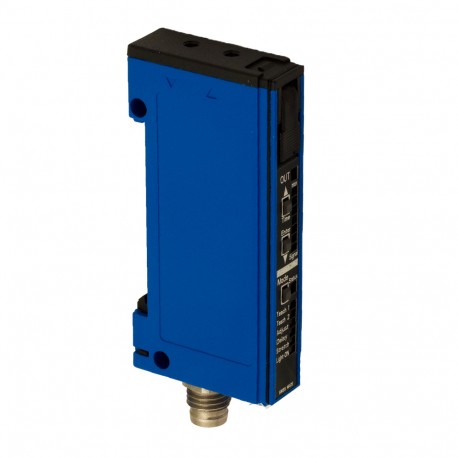

FX4/0N-0F MICRO DETECTORS Fibre amplifier Optical fibre amplifierDIN rail NPN teach-in plug M8
$0.00USD
3884 in stock
Key Specifications
Weight:17 g
Emission:Led Rosso
Approvals:CE
Dimensions:10x31x60 mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 17 g |
| Emission | Led Rosso |
| Approvals | CE |
| Dimensions | 10x31x60 mm |
| Hysteresis | 10% |
| Connections | M8 connettore 4 poli |
| Output type | NPN |
| Load current | ≤ 200 mA |
| LED indicators | LEDs; istogramma (uscita attivata); verde (alimentazione) |
| Leakage current | ≤ 0.1 mA |
| Operative range | 20…200 mm |
| Output Function | NO / NC selezionabile |
| Housing Material | PBTP |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10….30 Vdc |
| Max ripple content | ≤ 20% V / al / UB |
| Output voltage drop | ≤ 20% V a / a 200 mA |
| Switching frequency | ≤ 1,500 Hz |
| Thermal drift of Sr | 0.2 % / °C |
| Degree of protection | IP64 (EN60529) |
| Operating temperature | - 25°C…+ 55°C (senza condensa) |
| Shocks and vibrations | IEC 60947-5-2 / 7.4 |
| No-Load supply current | μ25 mA typ. A / at UB =24 V |
| Sensitivity adjustment | Teach-in |
| Nominal sensing distance | Vedi tabella delle fibre ottiche |
| Short-circuit protection | Si |
| Reverse Polarity Protection | Si |
| Interference to external light | 5.000lux (lampada ad incandescenza), 10.000lux (luce solare) |
| Time delay before availability | 80 ms |
| Impulsive Overvoltage Protection | Si |
Product Description
Optical Fibre Amplifier DIN rail NPN teach-in conn. M8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
