FWX-50A14F

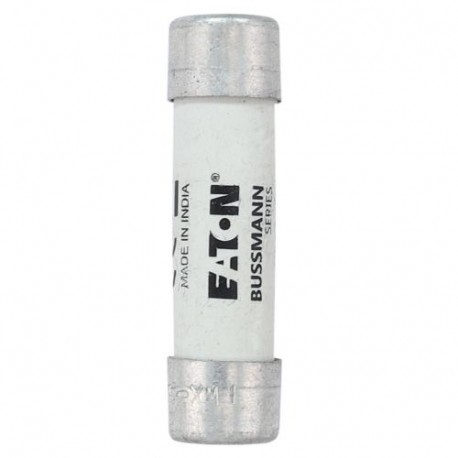

FWX-50A14F EATON ELECTRIC Fuse-link, high speed, 50 A, AC 250 V, DC 250 V, 14 x 51 mm, aR, UL
$0.00USD
3952 in stock
Key Specifications
Feature Name:Feature Value
Size (EF000088):14x51 mm
Model (EF000010):Ceramic fuse
Voltage type (EF000187):AC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Size (EF000088) | 14x51 mm |
| Model (EF000010) | Ceramic fuse |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 4 A |
| Release characteristic (EF000889) | Other |
| Power loss at rated current (EF012389) | 5.7 W |
| Type of fuse status indicator (EF004473) | Other |
| Utilization category according to IEC 60269 (EF002572) | aR (accompanied semiconductor protection) |
Product Description
Eaton Bussmann series FWX high speed fuse, 600V, 50A, 200 kAIC Vac, 50 kAIC at 250 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
