In Stock Hot Product
FWP-30B

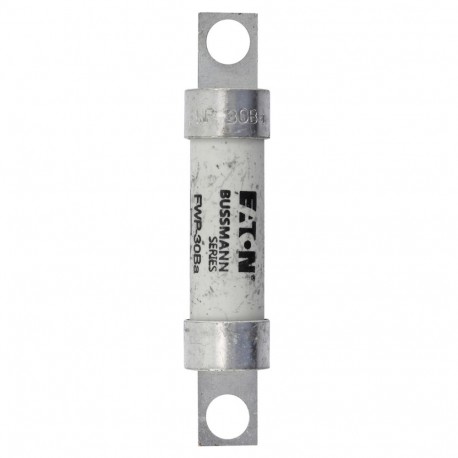

FWP-30B EATON ELECTRIC cartridge fuse, ultrafast, 30 A, AC 700 V DC 700 V, 15 x 73 mm, aR, UL
$0.00USD
3869 in stock
Key Specifications
Feature Name:Feature Value
Colour code (EF000931):None
Rated current (EF000227):30 A
Mounting holes (EF021553):M6
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Colour code (EF000931) | None |
| Rated current (EF000227) | 30 A |
| Mounting holes (EF021553) | M6 |
| Type of current (EF000143) | AC/DC |
| Rated voltage AC (EF007682) | 700 V |
| Rated voltage DC (EF012281) | 700 V |
| Breaking capacity (EF005617) | 200 kA |
| Power loss at rated current (EF012389) | 9 W |
| Type of fuse status indicator (EF004473) | None |
| Fuse system according to IEC 60269 (EF017676) | Other |
| Centre-to-centre distance of connections (EF021151) | 63.35 mm |
| Utilization category according to IEC 60269 (EF002572) | aR (accompanied semiconductor protection) |
| Fuse construction type according to IEC 60269 (EF015865) | Other |
Product Description
Eaton Bussmann series FWP high speed fuse, 1400 Vac (FWS 8-15A), 2100 Vac (FWS 2-6A), 1000 Vdc (FWL/FWS 2-30A), 30A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stu
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
