In Stock Hot Product

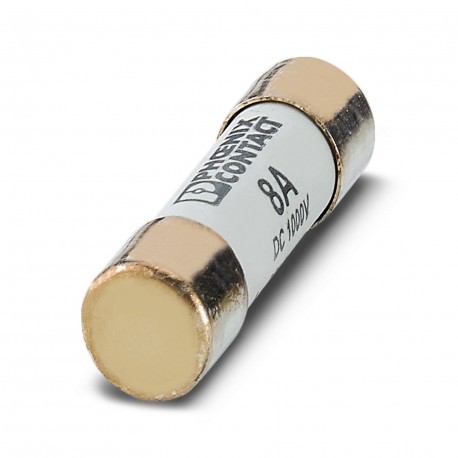

FUSE 10,3X38 8A PV
FUSE 10,3X38 8A PV 3061321 PHOENIX CONTACT Fuse
$7.48USD
1367 in stock
Key Specifications
GTIN:4046356523653
Orderkey:3061321
Catalog page:Page 465 (C-1-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356523653 |
| Orderkey | 3061321 |
| Catalog page | Page 465 (C-1-2017) |
| Packing unit | 10 pc |
| Length (General) | 38 mm |
| Country of origin | SI (Slovenia) |
| Fuse (Dimensions) | Midget / 10.3 x 38 |
| Diameter (General) | 10.3 mm |
| Custom tariff number | 85361010 |
| Minimum order quantity | 10 pc |
| Color (Key Commercial Data) | white |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Nominal current IN (Dimensions) | 8 A |
| Nominal voltage UN (Dimensions) | 1000 V DC |
| Weight per Piece (excluding packing) | 8.320 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.75 W |
Product Description
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristic
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
