FTRV 4 BU/RD

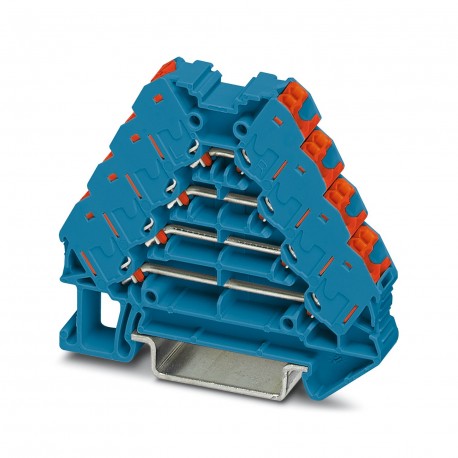

FTRV 4 BU/RD 3270174 PHOENIX CONTACT Marshalling panel
$0.00USD
3189 in stock
Key Specifications
:NS 35/15
Color:blue (RAL 5015)
Width:8.3 mm
Potentials:4
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NS 35/15 | |
| Color | blue (RAL 5015) |
| Width | 8.3 mm |
| Potentials | 4 |
| Product type | Marshalling terminal |
| Mounting type | NS 35/7,5 |
| Number of rows | 4 |
| Nominal current | 10 A |
| Nominal voltage | 250 V |
| Open side panel | Yes |
| Article revision | 00 |
| Stripping length | 8 mm ... 10 mm |
| Cross section AWG | 26 ... 14 (converted acc. to IEC) |
| Insulating material | PA |
| Number of positions | 2 |
| Rated surge voltage | 6 kV |
| Maximum load current | 10 A (with 1.5 mm² conductor cross section) |
| Overvoltage category | III |
| Nominal cross section | 1.5 mm² |
| Number of connections | 16 |
| Insulating material group | I |
| Color of connection elements | red |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Number of connections per level | 4 |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section, rigid [AWG] | 20 ... 14 (converted acc. to IEC) |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 26 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.56 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 1.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 1.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Product Description
Manoeuvring distributor, without drive compressor, rated voltage: 250 V, rated current: 10 A, section: 0.14 mm² - 2.5 mm², AWG: 14 - 26, connection type: Push-in connection, number of poles: 2, number
