FTPR-2/A7

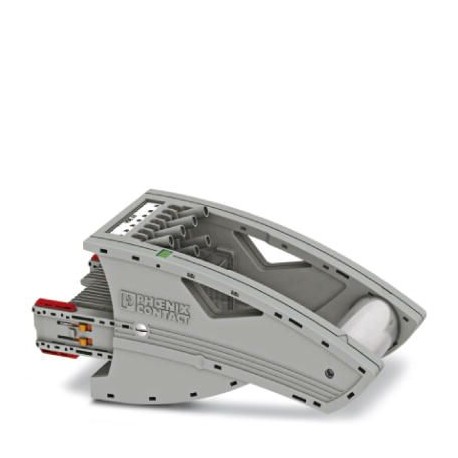

FTPR-2/A7 3069484 PHOENIX CONTACT Test plug
$0.00USD
4629 in stock
Key Specifications
GTIN:4046356943703
Note:Made to Order (non-returnable)
Orderkey:3069484
Catalog page:Page 609 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356943703 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3069484 |
| Catalog page | Page 609 (C-1-2017) |
| Packing unit | 1 pc |
| Pitch (General) | 8.2 mm |
| Width (General) | 71 mm |
| Length (General) | 86 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Color (Key Commercial Data) | gray |
| Potentials (Key Commercial Data) | 7 |
| Weight per Piece (excluding packing) | 468.000 g |
| Nominal current IN (Key Commercial Data) | 24 A |
| Nominal voltage UN (Key Commercial Data) | 400 V AC/DC |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 7 |
| Maximum load current (Key Commercial Data) | 24 A |
| Nominal cross section (Key Commercial Data) | 6 mm² |
| Flammability rating according to UL 94 (Mounting) | V0 |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| NF F16-101, NF F10-102 Class F (Key Commercial Data) | 2 |
| NF F16-101, NF F10-102 Class I (Key Commercial Data) | 2 |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | >32 % |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 20 |
| Flame test method (DIN EN 60695-11-10) (Key Commercial Data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Key Commercial Data) | passed |
| Surface flammability NFPA 130 (ASTM E 162) (Key Commercial Data) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Mounting) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Mounting) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Mounting) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Mounting) | HL 1 - HL 3 |
| Max. tightening torque of the test socket screw: (Connection data) | 0.6 Nm |
| Min. tightening torque of the test socket screw: (Connection data) | 0.5 Nm |
| Static insulating material application in cold (Key Commercial Data) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.31 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Key Commercial Data) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Key Commercial Data) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Key Commercial Data) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
Product Description
Test pin, with rotating handle and VDE A7 coding, nominal voltage: 400 V, nominal current: 24 A, number of poles: 7, connection type: Connection by terminal, Dimensioning section: 2.5 mm², color: gray
