FTPC-3/8S

Parameter	Value
GTIN	4055626389295
Note	Made to Order (non-returnable)
Orderkey	3069938
Catalog page	Page 615 (C-1-2017)
Packing unit	1 pc
Pitch (General)	8.2 mm
Width (General)	96.8 mm
Length (General)	86 mm
Country of origin	PL (Poland)
Custom tariff number	85366990
Color (Key Commercial Data)	gray
Potentials (Key Commercial Data)	8
Weight per Piece (excluding packing)	9.990 g
Nominal current IN (Key Commercial Data)	20 A
Nominal voltage UN (Key Commercial Data)	400 V AC/DC
Insulating material (Key Commercial Data)	PA
Number of positions (Key Commercial Data)	8
Maximum load current (Key Commercial Data)	20 A
Nominal cross section (Key Commercial Data)	6 mm²
Flammability rating according to UL 94 (Mounting)	V0
Conductor cross section flexible max. (Dimensions)	2.5 mm²
Conductor cross section flexible min. (Dimensions)	0.5 mm²
Max. AWG conductor cross section, flexible (Dimensions)	14
Min. AWG conductor cross section, flexible (Dimensions)	20
Flammability rating according to UL 94 (Key Commercial Data)	V0
Max. tightening torque of the test socket screw: (Connection data)	0.6 Nm
Min. tightening torque of the test socket screw: (Connection data)	0.5 Nm
Maximum power dissipation for nominal condition (Key Commercial Data)	1.31 W

Test connector, rated voltage: 400 V, rated current: 20 A, number of poles: 8, Sizing cross-section: 2.5 mm², color: gray

Technical specifications and performance data

Installation and operation guide

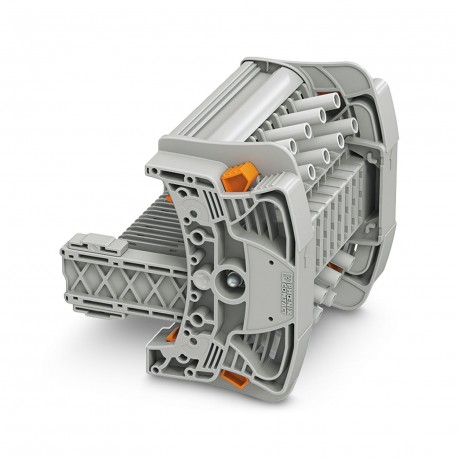

FTPC-3/8S 3069938 PHOENIX CONTACT Test plug
