FTPC-3/4S

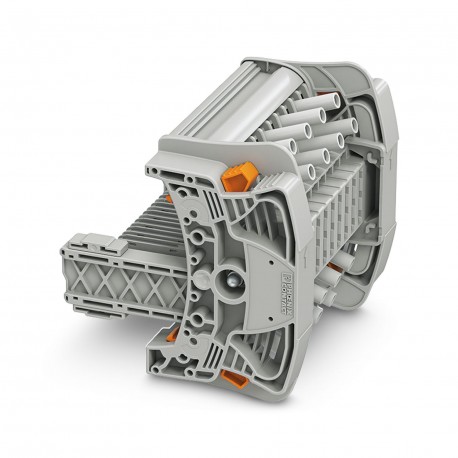

FTPC-3/4S 3069930 PHOENIX CONTACT Test plug
$0.00USD
4238 in stock
Key Specifications
Note:The conductor cross section depends on the cable lug used
Color:gray (RAL 7042)
Pitch:8.2 mm
Width:65.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | The conductor cross section depends on the cable lug used |
| Color | gray (RAL 7042) |
| Pitch | 8.2 mm |
| Width | 65.2 mm |
| Height | 86 mm |
| Potentials | 4 |
| Product type | Test plug terminal block |
| Nominal current | 20 A |
| Nominal voltage | 400 V AC/DC |
| Test socket torque | 0.5 |
| Insulating material | PA |
| Number of positions | 4 |
| Maximum load current | 20 A |
| Nominal cross section | 6 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Maximum power dissipation for nominal condition | 1.31 W |
Product Description
Test connector, nominal voltage: 400 V, nominal current: 20 A, number of poles: 4, Dimensioning cross-section: 2.5 mm², colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
