FTP 9+1

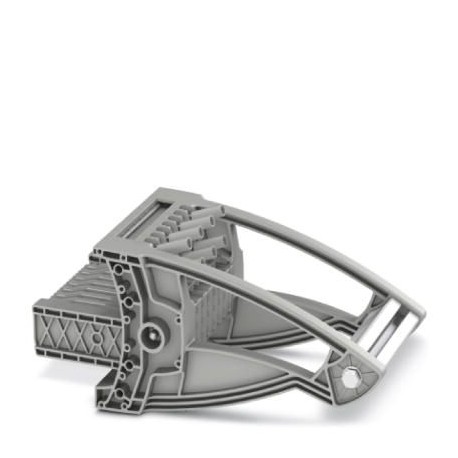

FTP 9+1 1029706 PHOENIX CONTACT Test plug
$0.00USD
4375 in stock
Key Specifications
GTIN:4055626532110
Note:Made to Order (non-returnable)
Orderkey:1029706
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626532110 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1029706 |
| Packing unit | 1 pc |
| Pitch (General) | 8.2 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Color (Key Commercial Data) | gray |
| Connection method (Dimensions) | Screw connection |
| Mounting type (Connection data) | Insertion in base strip |
| Potentials (Key Commercial Data) | 10 |
| Weight per Piece (excluding packing) | 22.220 g |
| Open side panel (Key Commercial Data) | No |
| Number of levels (Key Commercial Data) | 1 |
| Nominal current IN (Key Commercial Data) | 24 A |
| Nominal voltage UN (Key Commercial Data) | 400 V |
| Test surge voltage (Key Commercial Data) | 5 kV |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 10 |
| Rated surge voltage (Key Commercial Data) | 4 kV |
| Maximum load current (Key Commercial Data) | 24 A |
| Overvoltage category (Key Commercial Data) | III |
| Nominal cross section (Key Commercial Data) | 6 mm² |
| Insulating material group (Key Commercial Data) | I |
| Flammability rating according to UL 94 (Mounting) | V0 |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 20 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Max. tightening torque of the test socket screw: (Connection data) | 0.6 Nm |
| Min. tightening torque of the test socket screw: (Connection data) | 0.5 Nm |
| Maximum power dissipation for nominal condition (Key Commercial Data) | 1.31 W |
Product Description
Test connector, rated voltage: 400 V, rated current: 24 A, connection type: Screw connection, Sizing cross-section: 2.5 mm², color: gray
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
