FTP-3/4SL GN

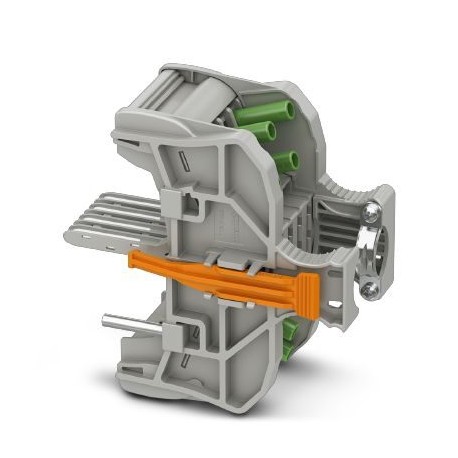

FTP-3/4SL GN 1030003 PHOENIX CONTACT Test plug, nom. voltage: 400 V, number of positions: 4, width: 56.8 mm,..
$0.00USD
4903 in stock
Key Specifications
GTIN:4055626532912
Orderkey:1030003
(Drawings):
Catalog page:Page 645 (C-1-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626532912 |
| Orderkey | 1030003 |
| (Drawings) | |
| Catalog page | Page 645 (C-1-2019) |
| Packing unit | 1 |
| Pitch (General) | 8.2 mm |
| Width (General) | 56.8 mm |
| Color (Drawings) | green |
| Height (General) | 98.2 mm |
| Length (General) | 96.8 mm |
| ETIM 4.0 (eCl@ss) | EC000897 |
| ETIM 5.0 (eCl@ss) | EC002255 |
| ETIM 6.0 (eCl@ss) | EC002255 |
| ETIM 7.0 (eCl@ss) | EC002255 |
| UNSPSC 13.2 (ETIM) | 39121410 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| Custom tariff number | 85366990 |
| Potentials (Drawings) | 4 |
| Current Ith (Drawings) | 20 A |
| eCl@ss 5.1 (Classifications) | 27141100 |
| eCl@ss 6.0 (Classifications) | 27141100 |
| eCl@ss 7.0 (Classifications) | 27440313 |
| eCl@ss 8.0 (Classifications) | 27440313 |
| eCl@ss 9.0 (Classifications) | 27440313 |
| Nominal voltage UN (Drawings) | 400 V |
| Insulating material (Drawings) | PA |
| Number of positions (Drawings) | 4 |
| Maximum load current (Drawings) | 20 A |
| Nominal cross section (Drawings) | 6 mm² |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Flammability rating according to UL 94 (Mounting) | V0 |
| Conductor cross section flexible max. (Dimensions) | 2.5 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Max. AWG conductor cross section, flexible (Dimensions) | 14 |
| Min. AWG conductor cross section, flexible (Dimensions) | 20 |
| Maximum power dissipation for nominal condition (Drawings) | 1.31 W |
| Max. tightening torque of the test socket screw: (Connection data) | 0.6 Nm |
| Min. tightening torque of the test socket screw: (Connection data) | 0.5 Nm |
Product Description
Test connector, nominal voltage: 400 V, number of poles: 4, Sizing cross-section: 2.5 mm², colour: green
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Circuit diagram
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
