FTP-3/20S

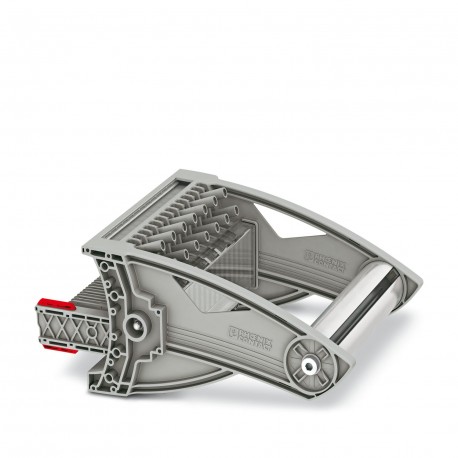

FTP-3/20S 3069988 PHOENIX CONTACT Test plug
$0.00USD
4381 in stock
Key Specifications
Color:gray (RAL 7042)
Pitch:8.2 mm
Width:188.7 mm
Height:86 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray (RAL 7042) |
| Pitch | 8.2 mm |
| Width | 188.7 mm |
| Height | 86 mm |
| Potentials | 20 |
| Product type | Test plug terminal block |
| Test socket torque | 0.5 |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 20 |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Test connector, number of poles: 20, colour: grey
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
