FTP-2/1 SERVICE

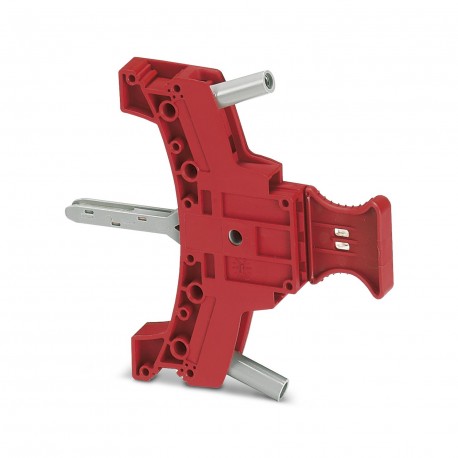

FTP-2/1 SERVICE 3069469 PHOENIX CONTACT Test plug
$0.00USD
4957 in stock
Key Specifications
Note:The conductor cross section depends on the cable lug used
Color:red (RAL 3001)
Pitch:8.2 mm
Width:9 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | The conductor cross section depends on the cable lug used |
| Color | red (RAL 3001) |
| Pitch | 8.2 mm |
| Width | 9 mm |
| Height | 86 mm |
| Potentials | 1 |
| Product type | Test plug terminal block |
| Mounting type | Insertion in base strip |
| Number of rows | 1 |
| Nominal current | 24 A |
| Nominal voltage | 400 V AC/DC |
| Open side panel | No |
| Article revision | 08 |
| Test socket torque | 0.5 |
| Test surge voltage | 5 kV |
| Insulating material | PA |
| Number of positions | 1 |
| Rated surge voltage | 4 kV |
| Maximum load current | 24 A |
| Overvoltage category | III |
| Nominal cross section | 6 mm² |
| Number of connections | 2 |
| Insulating material group | I |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 1.31 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Product Description
Test connector, nominal voltage: 400 V, nominal current: 24 A, Dimensioning cross-section: 2.5 mm², colour: red
