FT-Z40HBW
FT-Z40HBW PANASONIC Fiber (thru-beam, flat type, 3.5 x 14 x 11mm, top sensing, with boss, bending radius R1,..
$0.00USD
4956 in stock
Key Specifications
Item:Specifications
Details:Flat Type Fiber
Product:Thru-beam type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Flat Type Fiber |
| Product | Thru-beam type Fiber |
| Free-cut | Available |
| Fiber type | Flat type, with boss |
| Application | General-purpose |
| Part Number | FT-Z40HBW |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Flat Type Fiber |
| Sensing mode | Thru-beam type |
| Mounting lens | Not available |
| Beam direction | Fiber bending type |
| Product Number | FT-Z40HBW |

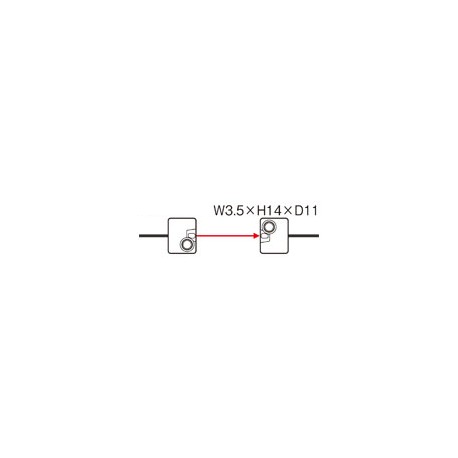

| Fiber head length | W3.5 x H14 x D11 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 800 mm 31.496 in (FX-500 series) |
| Sensing range（FAST） | 490 mm 19.291 in (FX-500 series) |
| Sensing range（H-SP） | 160 mm 6.299 in (FX-500 series) |
| Sensing range（HYPR） | 3,300 mm 129.921 in (FX-500 series) |
| Sensing range（LONG） | 1,400 mm 55.118 in (FX-500 series) |
| Sensing range（U-LG） | 1,900 mm 74.803 in (FX-500 series) |
| Allowable bending radius | R1 mm |
| Mounting protective tube | Not available |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
