FRONT-MSTB 2,5/ 3-ST-5,08BD2S1

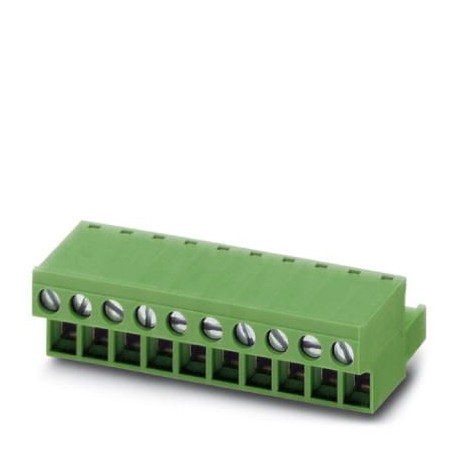

FRONT-MSTB 2,5/ 3-ST-5,08BD2S1 1712677 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3058 in stock
Key Specifications
GTIN:4055626291864
Orderkey:1712677
Packing unit:50 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626291864 |
| Orderkey | 1712677 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Screw thread (Dimensions) | M2,5 |
| Pitch (Key Commercial Data) | 5.08 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection method (Dimensions) | Front screw connection |
| Range of articles (Dimensions) | FRONT-MSTB 2,5/..-ST |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 3 |
| Dimension a (Key Commercial Data) | 10.16 mm |
| Width [ w ] (Key Commercial Data) | 10.16 mm |
| Nominal cross section (Dimensions) | 2.5 mm² |
| Rated voltage (III/2) (Dimensions) | 320 V |
| Weight per Piece (excluding packing) | 9.120 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 3,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
