FRONT 2,5-H/SA 5-EX

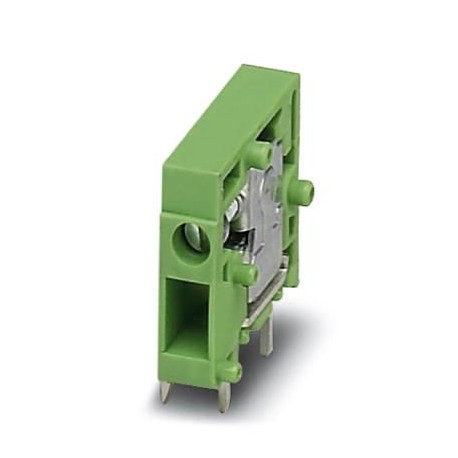

FRONT 2,5-H/SA 5-EX 1701159 PHOENIX CONTACT PCB terminal block
$2.06USD
4884 in stock
Key Specifications
GTIN:4017918022990
Orderkey:1701159
Catalog page:Page 158 (C-1-2013)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918022990 |
| Orderkey | 1701159 |
| Catalog page | Page 158 (C-1-2013) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | Test passed |
| Minimum order quantity | 50 pc |
| Torque (Item properties) | 0.4 Nm ... 0.5 Nm |
| Note (Connection capacity) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Pitch (Material data - housing) | 5 mm |
| Pin layout (Key Commercial Data) | Linear pinning |
| Caption (Material data - housing) | Schematic representation – for additional information, see product range drawing in the Download Center |
| Screw thread (Key Commercial Data) | M2,5 |
| Stripping length (Item properties) | 9 mm |
| Mounting type (Key Commercial Data) | Wave soldering |
| (Termination and connection method) | 2.5 mm² / solid / > 50 N |
| Weight per Piece (excluding packing) | 3.320 g |
| Pin spacing (Material data - housing) | 5 mm |
| Width [ w ] (Material data - housing) | 5 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 24 mm |
| Length [ l ] (Material data - housing) | 19.5 mm |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Front screw connection |
| Range of articles (Key Commercial Data) | FRONT 2,5-H-EX |
| Pin dimensions (Material data - housing) | 0.8 x 0.8 mm |
| Pin spacing (Dimensions for the product) | 5 mm |
| Solder pin [P] (Material data - housing) | 5 mm |
| Insulating material group (Pull-out test) | I |
| Number of positions (Key Commercial Data) | 1 |
| Hole diameter (Dimensions for the product) | 1.2 mm |
| Number of potentials (Key Commercial Data) | 1 |
| Drive form screw head (Key Commercial Data) | Slotted |
| Number of connections (Key Commercial Data) | 1 |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Surface characteristics (Connection capacity) | Tin-plated |
| Type of packaging (Dimensions for PCB design) | packed in cardboard |
| Pieces per package (Dimensions for PCB design) | 50 |
| Brief article description (Key Commercial Data) | PCB terminal block |
| Conductor cross section solid (Item properties) | 0.2 mm² ... 2.5 mm² |
| Diagram (Air clearances and creepage distances) | |
| Pull-out test (Termination and connection method) | IEC 60999-1:1999-11 |
| Conductor cross section flexible (Item properties) | 0.2 mm² ... 2.5 mm² |
| Insulating material group (Material data - contact) | I |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Conductor cross section AWG / kcmil (Item properties) | 24 ... 14 |
| Height (without solder pin) (Material data - housing) | 19 mm |
| Ambient temperature (assembly) (Packaging information) | -5 °C ... 100 °C |
| Denomination packing units (Dimensions for PCB design) | Pcs. |
| Ambient temperature (operation) (Packaging information) | -40 °C |
| Test for conductor damage and slackening (Ambient conditions) | IEC 60999-1:1999-11 |
| Metal surface soldering area (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Ambient temperature (storage/transport) (Packaging information) | -40 °C ... 70 °C |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Connection in acc. with standard (Current carrying capacity / derating curves) | EN-VDE |
| Flammability rating according to UL 94 (Current carrying capacity / derating curves) | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.2 mm² / solid / > 10 N |
Product Description
Terminal block for printed circuit board, nominal current: 21 A, nominal section: 2.5 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, family of articles: FRONT 2.5-H-EX, p
