FQIH/00-2E

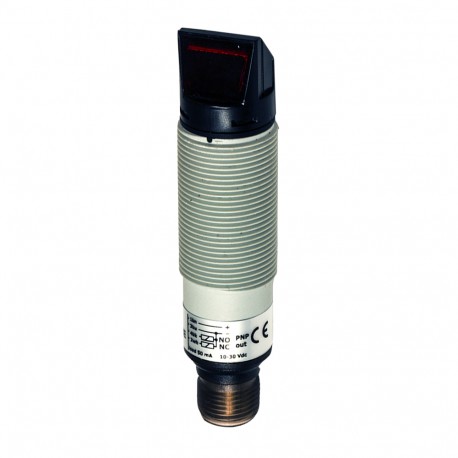

FQIH/00-2E MICRO DETECTORS Photoelectric sensor 90° Emitter 15 m plastic plug M12
$0.00USD
4839 in stock
Key Specifications
Weight:30g
Emission:Infrared (880 nm)
Approvals:CE,
Dimensions:M18 x 1/L=76,3mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Emission | Infrared (880 nm) |
| Approvals | CE, |
| Dimensions | M18 x 1/L=76,3mm |
| Connections | M12 Plug |
| LED indicators | Green (powerON) |
| Optic position | Right angle (90°) |
| Emitter/Receiver | Emitter |
| Housing Material | PBT |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 1Nm |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | PC |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1, screwdriver |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤25mA |
| Nominal sensing distance | 15m |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Time delay before availability | ≤200ms |
Product Description
FQIH/00-2E Photoelectric sensor 90° Emitt. 15 m plast. conn. M12
