FQ-CR25050F-M

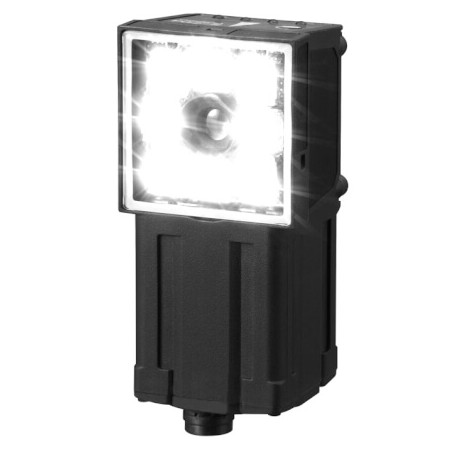

FQ-CR25050F-M FQ 5104F 355269 OMRON FQ Reading 2D Code FOV:13x8.2-53x33 Dist:56-215 PNP
$4,024.72USD
36 in stock
Key Specifications
(Specifications & ordering info):
OS (Specifications & ordering info):Microsoft Windows XP Home Edition/Professional SP2 or higher (32-bit version)Microsoft Windows 7 Home Premium or higher (32-bit/64-bit version)
CPU (Specifications & ordering info):Core 2 Duo 1.06 GHz or the equivalent or higher
HDD (Specifications & ordering info):500 MB min. available space6
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (Specifications & ordering info) | |
| OS (Specifications & ordering info) | Microsoft Windows XP Home Edition/Professional SP2 or higher (32-bit version)Microsoft Windows 7 Home Premium or higher (32-bit/64-bit version) |
| CPU (Specifications & ordering info) | Core 2 Duo 1.06 GHz or the equivalent or higher |
| HDD (Specifications & ordering info) | 500 MB min. available space6 |
| PNP (Specifications & ordering info) | FQ-CR25⬜⬜⬜⬜-M |
| RAM (Specifications & ordering info) | 1GB min. |
| Item (Specifications & ordering info) | 2D Code Reader |
| Model (Specifications & ordering info) | FQ2-D30 |
| Images (Specifications & ordering info) | In Sensor: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.) |
| Pixels (Specifications & ordering info) | 320 × 240 |
| Weight (Specifications & ordering info) | 50 g max. |
| Monitor (Specifications & ordering info) | 1,024 × 768 dots min. |
| RS-232C (Specifications & ordering info) | − |
| Ratings (Specifications & ordering info) | Power supply voltage |
| SD card (Specifications & ordering info) | SDHC-compliant, Class 4 or higher recommended |
| Shutter (Specifications & ordering info) | 1/250 to 1/32,258 |
| Lighting (Specifications & ordering info) | Lighting method |
| Backlight (Specifications & ordering info) | Life expectancy1 |
| Item Type (Specifications & ordering info) | Model with DC power supply |
| LED class (Specifications & ordering info) | Class 2(Applicable standards: IEC 60825-1:1993 +A1:1997 +A2:2001,EN 60825-1:1994 +A1:2002 +A2:2001, and JIS C 6802:2005) |
| Materials (Specifications & ordering info) | Case: ABS |
| Appearance (Specifications & ordering info) | |
| Imageinput (Specifications & ordering info) | Image processing method |
| Item Model (Specifications & ordering info) | FQ-BAT1 |
| Monochrome (Specifications & ordering info) | NPN |
| Indications (Specifications & ordering info) | LCD |
| Usage time1 (Specifications & ordering info) | 1.5 h |
| Battery type (Specifications & ordering info) | Secondary lithium ion battery |
| Data logging (Specifications & ordering info) | Measurement results, measured images |
| Image filter (Specifications & ordering info) | High dynamic range (HDR) and polarizing filter (attachment) |
| Screen saver (Specifications & ordering info) | Provided |
| Field of view (Specifications & ordering info) | Refer to Ordering information(Tolerance (field of vision): ±10% max.) |
| I/O expansion (Specifications & ordering info) | − |
| Menu language (Specifications & ordering info) | English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese |
| Rated voltage (Specifications & ordering info) | 3.7 V |
| Charging time4 (Specifications & ordering info) | 2 h |
| Communications (Specifications & ordering info) | − |
| Display colors (Specifications & ordering info) | 16.7 million |
| Image elements (Specifications & ordering info) | 1/3-inch Monochrome CMOS |
| Lighting color (Specifications & ordering info) | White |
| Main functions (Specifications & ordering info) | Types of measurement displays |
| Output signals (Specifications & ordering info) | 3 signalsControl output (BUSY)Overall judgement output (OR)Error output (ERROR)Note: The three output signals can be allocated for the judgements of individual inspection items. |
| Retry function (Specifications & ordering info) | Normal retry, Exposure retry, Scene retry, Trigger retry |
| Charging method (Specifications & ordering info) | Charged in Touch Finder (FQ2-D31). AC adapter (FQ-AC⬜) is required. |
| Field of vision (Specifications & ordering info) | Narrow View |
| Life expectancy2 (Specifications & ordering info) | 1,000,000 touch operations |
| Nominal capacity (Specifications & ordering info) | 1,800 mAh |
| Number of pixels (Specifications & ordering info) | 350,000 pixels |
| Power consumption (Specifications & ordering info) | DC power connection: 0.2 A max. |
| Ambient atmosphere (Specifications & ordering info) | No corrosive gas |
| Auxiliary function (Specifications & ordering info) | Math (arithmetic, calculation functions, trigonometric functions, and logic functions) |
| External interface (Specifications & ordering info) | Ethernet |
| I/O specifications (Specifications & ordering info) | Input signals |
| 350,000 pixels type (Specifications & ordering info) | Figure 1 |
| Current consumption (Specifications & ordering info) | 2.4 A max. |
| Measurement trigger (Specifications & ordering info) | External trigger (single or continuous) |
| Operation interface (Specifications & ordering info) | Touch screen |
| Applicable standards (Specifications & ordering info) | EN 61326-1:2006 and IEC61010-1 |
| Battery backup life5 (Specifications & ordering info) | 300 charging cycles |
| Degree of protection (Specifications & ordering info) | IEC 60529 IP20 (when SD card cover, connector cap, or harness is attached) |
| Brightness adjustment (Specifications & ordering info) | Provided |
| Position compensation (Specifications & ordering info) | None |
| Processing resolution (Specifications & ordering info) | 752 × 480 |
| Verification function (Specifications & ordering info) | None |
| Ambient humidity range (Specifications & ordering info) | Operating and storage: 35% to 85% (with no condensation) |
| Environmental immunity (Specifications & ordering info) | Ambient temperature range |
| Partial input function (Specifications & ordering info) | Supported horizontally only. |
| Ethernet specifications (Specifications & ordering info) | 100Base-TX/10Base-T |
| Types of display images (Specifications & ordering info) | Through, frozen, zoom-in, and zoom-out images |
| Ambient temperature range (Specifications & ordering info) | Operating: 0 to 40ºCStorage: −25 to 65ºC (with no icing or condensation) |
| Number of registered scenes (Specifications & ordering info) | 32 |
| Number of connectable Sensor (Specifications & ordering info) | Number of sensors that can be recognized (switched): 32 max. number or sensor that can displayed on monitor: 8 max. |
| Shock resistance (destruction) (Specifications & ordering info) | 150 m/s² 3 times each in 6 direction (up, down, right, left, forward, and backward) |
| Accessories included with sensor (Specifications & ordering info) | Mounting Bracket (FQ-XL)(1), Polarizing Filter Attachment (FQ-XF1) (1), Instruction Manual, Quick Startup Guide, Member Registration Sheet, Warning Label |
| Continuous operation on Battery3 (Specifications & ordering info) | − |
| Vibration resistance (destruction) (Specifications & ordering info) | 10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions 8 min each, 10 times |
| Number of simultaneous measurements (Specifications & ordering info) | 32 |
| Field of vision/Installation distance (Specifications & ordering info) | Refer to Figure 1 |
| Accessories included with Touch Finder (Specifications & ordering info) | Touch Pen (FQ-XT), Instruction Manual |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Field of vision
