FPAS280/500

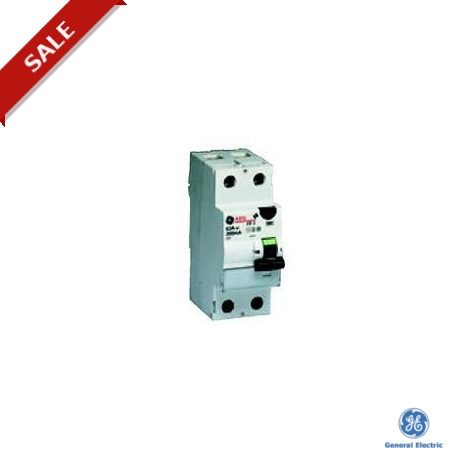

FPS280/500 604036 GENERAL ELECTRIC Residual current circuit breaker FP S 2P 80 A 500 mA
$0.00USD
3526 in stock
Key Specifications
Type:Type S
Poles:2P
Range:FP
Serie:Series S
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type S |
| Poles | 2P |
| Range | FP |
| Serie | Series S |
| Series | Residual current circuit breaker |
| Approvals | AENOR, KEMA, CEBEC, CE |
| Frequency | 50 - 60 Hz |
| Nominal current | Im = 500 A |
| Rated current In | 80 A |
| Residual current | 500 mA |
| Standard packing | 6 |
| Number of modules | 2 |
| Nominal current Un | 230 Vac |
| Ambient temperature | -25°C / 40°C |
| ETIM 5.0 (DIMENSIONS) | EC000003 |
| ETIM 6.0 (DIMENSIONS) | EC000003 |
| Minimum servicevoltage | 117 V |
| Short circuit capacity | Inc = 10000A at 230V/400V |
| Electrical service life | 20000/10000 |
| Weight (SPECIFICATIONS) | 0.22 kg |
| Nuisance tripping resistance | 3000 A 8/20 µs-200 A 0.5 µs-100 kHz |
| Short circuit capacity / norm | fuse 80A gG |
| Short circuit capacity EP30/EP60/EP100 | 6000/10000 A |
| Terminal capacity flexible/rigid cable | 35-50 mm² |
| Differential making and breaking capacity | I(Δ)m = 500 A |
| Tropicalisation according to IEC 60068-2-28/2-30 | 95%RV at 55°C |
