FP 1,27/ 16-MH

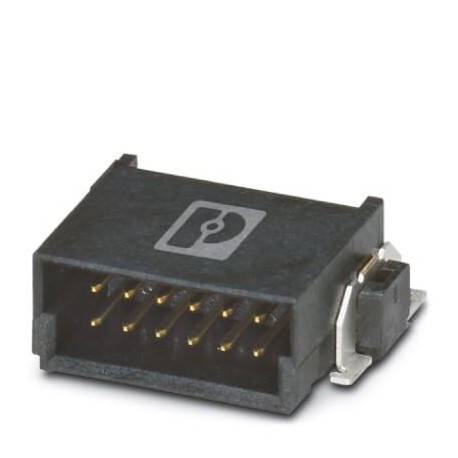

FP 1,27/ 16-MH 1714914 PHOENIX CONTACT SMD male connector, Nominal current at 20 °C: 1.4 A, Test voltage: 50..
$0.00USD
3971 in stock
Key Specifications
GTIN:4055626402925
Orderkey:1714914
(Drawings):
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626402925 |
| Orderkey | 1714914 |
| (Drawings) | |
| Packing unit | 1 pc |
| (Service life) | No hazardous substances above threshold values |
| Pitch (Drawings) | 1.27 mm |
| Country of origin | CZ (Czech Republic) |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Custom tariff number | 85366930 |
| Pin layout (Drawings) | Linear pad geometry |
| Minimum order quantity | 560 pc |
| Note (Electrical data) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Mounting type (Drawings) | SMD soldering |
| China RoHS (Service life) | Environmentally friendly use period: unlimited = EFUP-e |
| Plug-in system (Drawings) | FINEPITCH 1,27 mm |
| Type of contact (Drawings) | Male connector |
| Number of levels (Drawings) | 2 |
| (Dimensions for PCB design) | ± 2 ° in transverse direction |
| Range of articles (Drawings) | FP 1,27/...-MH |
| eCl@ss 4.0 (Classifications) | 27260700 |
| eCl@ss 4.1 (Classifications) | 27260700 |
| eCl@ss 5.0 (Classifications) | 27260700 |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Number of positions (Drawings) | 16 |
| Test voltage (Item properties) | 500 V AC |
| Number of potentials (Drawings) | 16 |
| Pitch (Material data - housing) | 1.27 mm |
| Process (Packaging information) | Reflow soldering |
| Contact material (Electrical data) | Cu alloy |
| Brief article description (Drawings) | SMD male connectors |
| Contact resistance (Item properties) | ≤25 mΩ, (IEC 60512-2-1:2002-02) |
| Weight per Piece (excluding packing) | 1.430 g |
| Coplanarity (Material data - housing) | ≤ 0.1 mm |
| Dimension a (Material data - housing) | 8.89 mm |
| Pin spacing (Material data - housing) | 1.27 mm |
| Specification (Packaging information) | Following IPC/JEDEC J-STD-020E:2014-12 |
| Width [ w ] (Material data - housing) | 15.25 mm |
| Height [ h ] (Material data - housing) | 5 mm |
| Length [ l ] (Material data - housing) | 7.2 mm |
| Insulation resistance (Item properties) | ≥ 10 GΩ, (IEC 60512-3-1:2002-02) |
| Pin spacing (Dimensions for the product) | 1.27 mm |
| Contact cover (Dimensions for PCB design) | 0.9 mm |
| Medium offset (Dimensions for PCB design) | ± 0.7 mm in longitudinal and transverse direction |
| Surface characteristics (Electrical data) | Selective coating |
| Overlap length (Dimensions for PCB design) | 1.5 mm |
| Nominal current at 20 °C (Item properties) | 1.4 A (50-pos.) |
| Angular tolerance (Dimensions for PCB design) | ± 4 ° in longitudinal direction |
| Insulating material (Material data - contact) | LCP |
| [W] tape width (Dimensions for the application) | 32 mm |
| Moisture Sensitive Level (Packaging information) | MSL 1 |
| Ambient temperature (assembly) (Processing notes) | -5 °C ... 100 °C |
| Ambient temperature (operation) (Processing notes) | -55 °C ... 125 °C |
| Type of packaging (Dimensions for the application) | 32 mm wide tape |
| [A] coil diameter (Dimensions for the application) | 330 mm |
| Insulating material group (Material data - contact) | IIIa |
| Pieces per package (Dimensions for the application) | 560 |
| CTI according to IEC 60112 (Material data - contact) | 175 |
| Dimensional drawing (Dimensions for the application) | |
| Service life (Air clearances and creepage distances) | 500 Insertion/withdrawal cycles, Performance level 1 |
| Classification temperature Tc (Packaging information) | 260 °C |
| Height (without solder pin) (Material data - housing) | 4.2 mm |
| Outer packaging type (Dimensions for the application) | Transparent-Bag |
| Air clearances and creepage distances (Mechanical tests) | min. 0.4 mm |
| Metal surface contact area (top layer) (Electrical data) | Gold (Au) |
| Ambient temperature (storage/transport) (Processing notes) | -40 °C ... 70 °C |
| Denomination packing units (Dimensions for the application) | Pcs. |
| Metal surface contact area (middle layer) (Electrical data) | Nickel (Ni), Palladium nickel (PdNi) |
| [W2] coil overall dimension (Dimensions for the application) | 38.4 mm |
| Insertion and withdrawal force per contact (Ambient conditions) | approx. 0.5 N |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
Product Description
SMD blade strip, rated current: 1.4 A, Test voltage: 500 V AC, number of poles: 16, pitch: 1.27 mm, color: black, contact surface: Gold, contact type: Male, mounting: SMD welding
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DiagramType: FP 1,27/...-FH with FP 1,27/...-MH
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
